RUCHSER glazing and control press RU-VGP
---------------------------------------
for glazing, sealing and final inspection, the press beam process
is done manually.

Equipment RU-VGP:

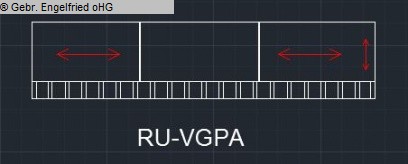

A press beam can be folded down on the left or right
Press beam can be moved manually
Press bar guided above and below via toothed racks, therefore more absolute
Parallel run when pressing
Safety control during pressure build-up.
With stepless pneumatic lifting device, from 300-800 mm
System part optionally with felt or PVC sliding strip support, as well as with
rollers
Made of rubber Ø 48 mm, roller spacing 50 mm or 25 mm available
Roller conveyor with steel rollers 200 mm long as an installation surface

Suggested equipment, alternative / optional equipment on request!

Pos. 1.0: Article no .: 1170000
RU-VGP3 glazing and control press

Clamping width maximum 3000 mm,
Length 3550 mm, width 900 mm, height 2700 mm,
System height 1900 mm, press beam height 2400 mm.
Clamping beam depth 150 mm.
Plant part covered with felt.
Installation area as a roller conveyor with a roller diameter of 50 mm,
Roll length 200 mm, roll spacing 200 mm.
Lifting device from 300 to 800 mm above the floor.
One clamping beam can be folded down, the second
Clamping beam can be moved and cannot be folded down
assembled.
When ordering, please specify whether right or
left clamping beam should be movable!

Pos. 1.1: Article no .: 6991
Swivel device from 83 ° to 90 ° for RU-VGP and RU-VGPA
this widens the VGPA / VGP by 200 mm.

Pos. 1.2: Article no .: 21424-1
Clamping beam increase from 2400 mm to 2700 mm.

Pos. 1.3: Article no .: 5070
2 foldable stops for control work and
Sealing / glazing from the outside.

Item 1.4: Article no .: 5056
RU-AK-6 storage box 1000x120 mm, 6 compartments,
for hanging in the roller conveyor

Item 1.5: Article no .: 5130
System part with rollers made of rubber,
Ø 48 mm, roller spacing 50 mm, for RU-VGPA3

Item 1.6: Article no .: 5908
Tilting device for working in a horizontal position
For glazing presses RU-VGP3

---------------------------------------

Total price in this version ex works: on request!
plus packaging and transport.

Option version with 4 m working length, surcharge: 1,090.00 euros plus St.

See attached video and PDF brochure.

(Technical information according to the manufacturer - without guarantee!)
