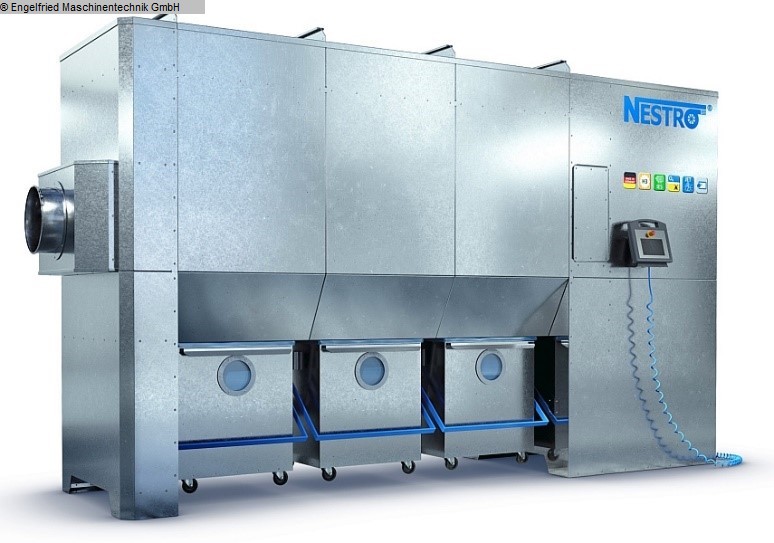

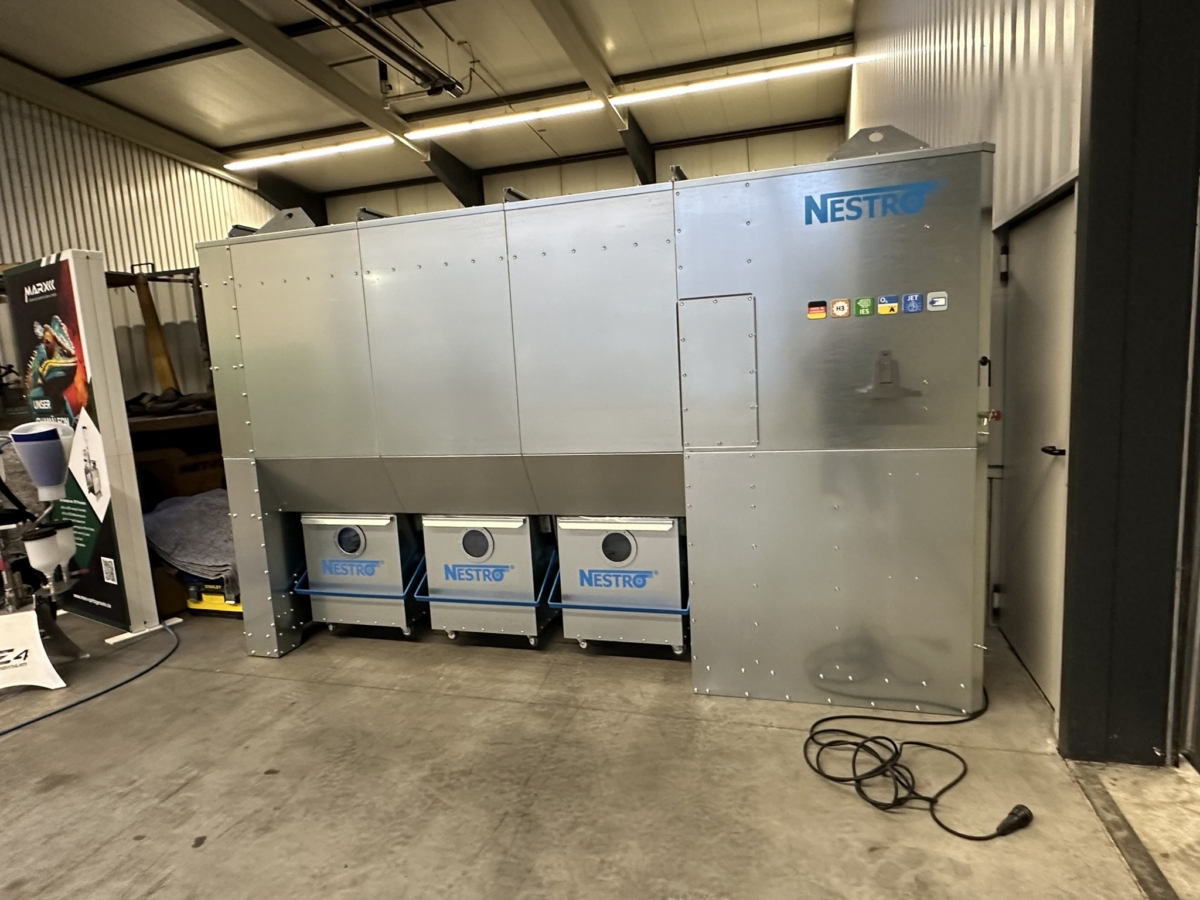

Dust extractor NE-J 300 3 ton. m. Jet filter regeneration
--------------------------------------------------
Including a new type of extinguishing device with a drop flap and oxygen extraction,
5 m cable for junction box, high-efficiency reluctance motor IE5, FU control,
Wired 7" color touch panel, automatic start/stop start control
and monitoring of up to 10 woodworking machines included
automatic slide control, integrated emergency stop function and is
of course H3 tested.
The newly designed model fits into any standard shipping container. The suction nozzle
with injection box and non-return flap is located in the middle of the front
dust extractor. The highly efficient JET filter regeneration guarantees high
Filter service life, low filter resistance and therefore high suction performance.
The dust bins each have 4 swivel castors and a viewing window
Fill level control and with an inserted sturdy chip collecting bag
fitted.

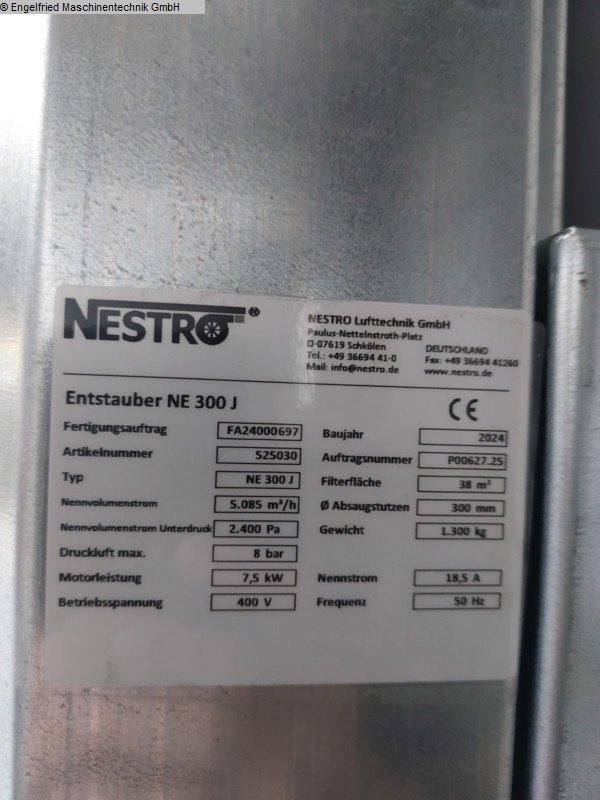

Technical data / manufacturer description
--------------------------------------------------

• Volume flow max./nom.: 6,000 / 5,085 m³/h
• Operating volume flow: 7,500 m³/h
• Negative pressure v.V./nom.: 2,950 / 2,400 Pa
• Suction side connection: Ø 300 mm
• Operating mode: continuous operation
• Type of current: three-phase current 400 V / 50 Hz
• Power consumption: 7.5 kW / 18.5 A
• Fan / drive: IE5, FU controlled, high-efficiency reluctance motor
• Filter area: 36.2 m²
• Filter regeneration: JET / automatic
• Compressed air consumption per cycle: 560 liters.
• Chip disposal: Chip bin with PE bag
• PE bag (consumables): Item no. 500020
• Collection volume 3 x 0.16 m³
• Weight: approx. 1,300 kg
• Noise value according to EN 11201: 72-74 dB(A) according to MRI (+/- 4dB)
• Depth x width x height: 1,020 x 3,880 x 2,250 mm

Necessary connections:
• Compressed air standard coupling NW 7.2; 6 bar, dry compressed air and oil-free
• 1 x junction box/sub-distribution/backup fuse 25 A

In systems with a chip bag filling, due to different reasons
Suction volume and differing chip/dust proportions ensure a uniform
Filling cannot be guaranteed.
-------------------------------------------------- --
Total price: On request!
Assembly according to effort - on request!
-------------------------------------------------- --
(Technical information provided by the manufacturer is not guaranteed!)
