| Szczegóły oferty | |
| Sklad numer | 1305-2715 |
| Typ maszyny | Forma czterostronna |
| Fabrykant | CASOLIN |
| Typ | Mega 230/6 |
| Rok budowy | 2010 |
| Rodzaj sterowania | konventionell |
| Miejsce skladowania | Oberkochen |
| Kraj pochodzenia | Italien |
| Czas dostawy | immediately |
| Podstawa Transportowa | ex warehouse |
| Number of spindles | 6 St. |
| Working width | 230 mm |
| Working height | 120 mm |
| Length of the planing table | 2500 mm |
| feed | 5-25 m/min |

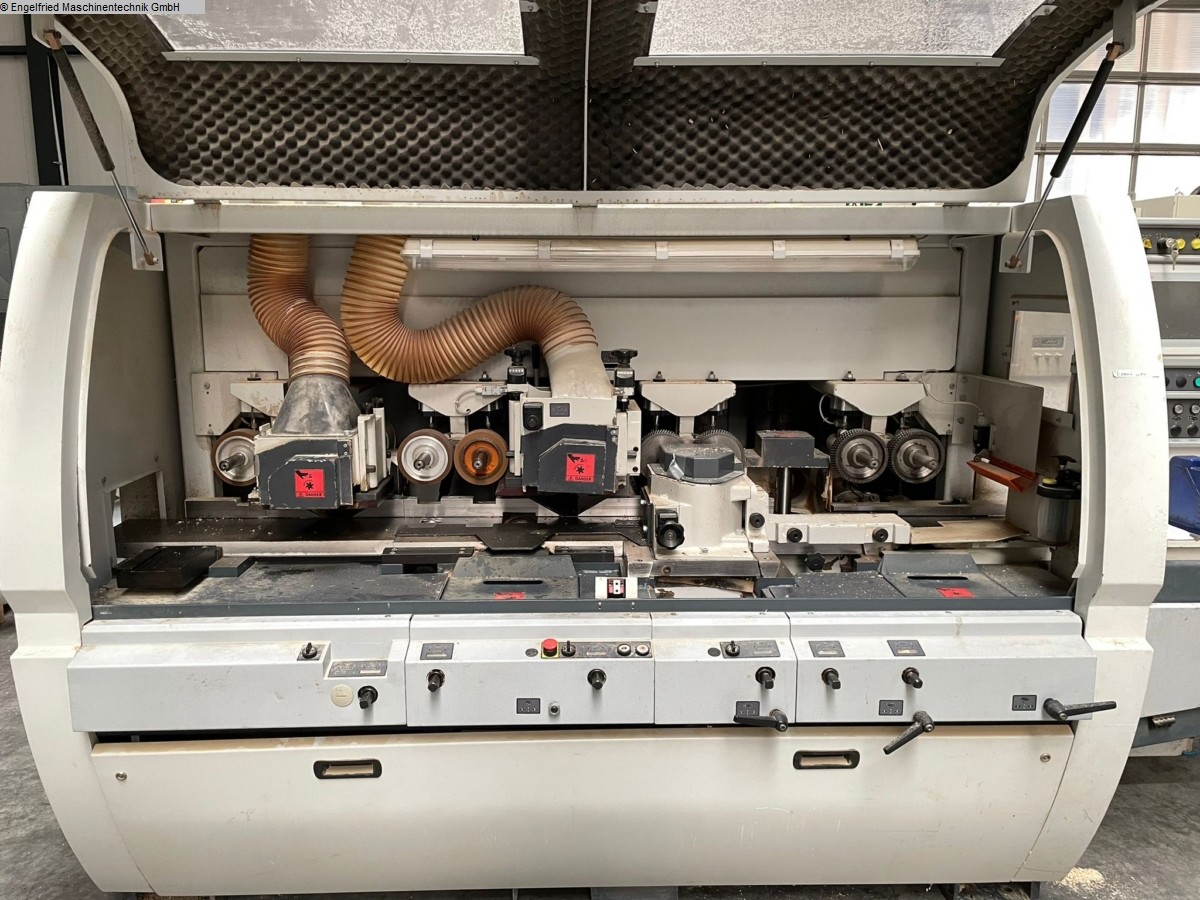

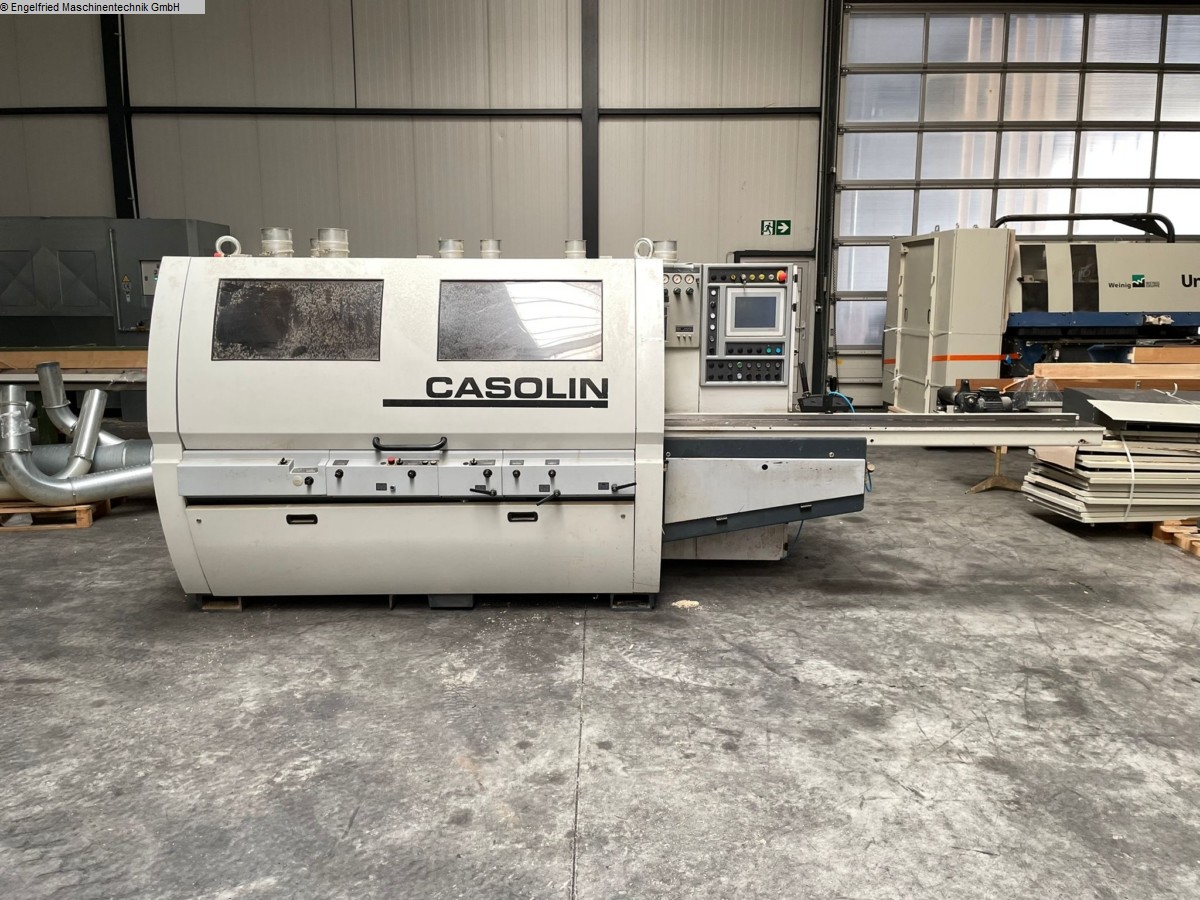

CASOLIN MEGA 230/6 four-side planer
--------------------------------------------------------
6 spindles, with touchscreen controls.
Width and height controlled.

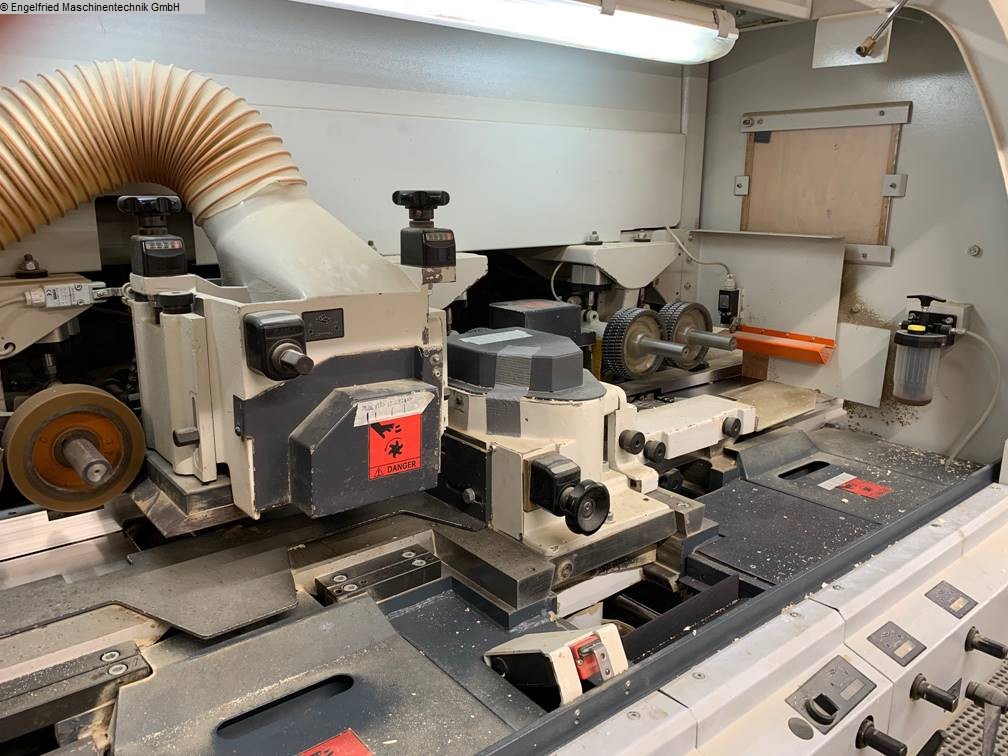

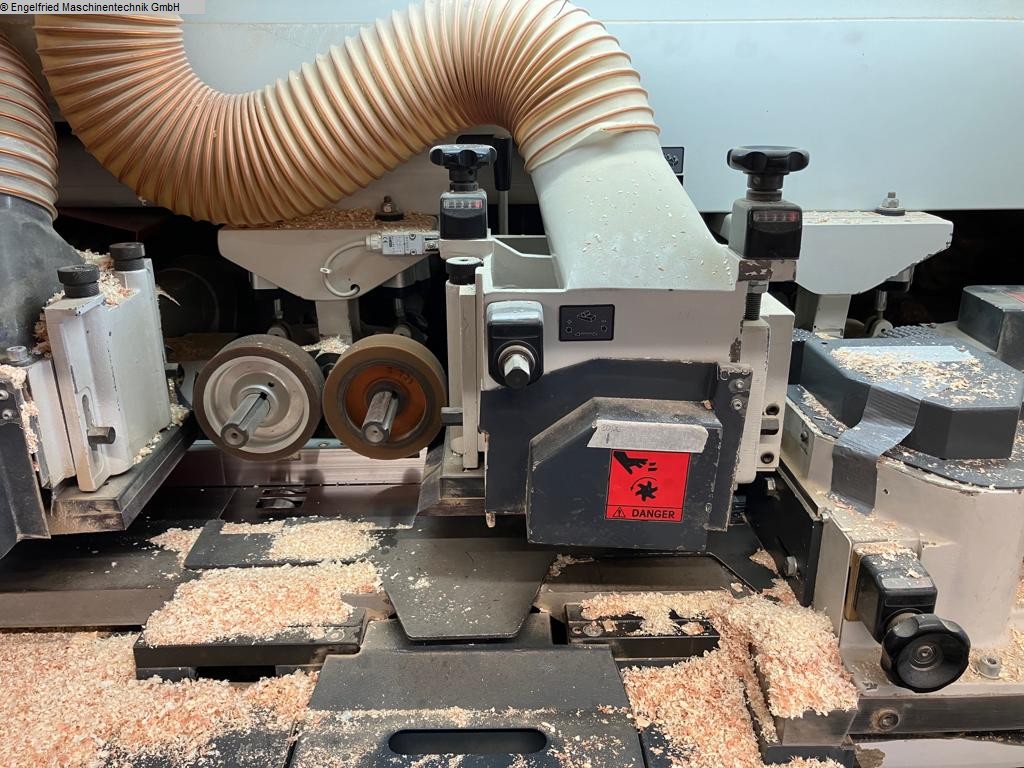

Spindle arrangement:
1. Spindle: below, 40 mm diameter, 6,000 rpm, 5.5 kW
2nd spindle: right hand, 40 mm diameter, 6,000 rpm, 11 kW together with
3. Spindle: left, 40 mm diameter, 6,000 rpm
4. Spindle: top, 40 mm diameter, 6,000 rpm, 7.5 kW
5. Spindle: bottom, 40 mm diameter, 8,000 rpm, 5.5 kW
6. Spindle: top, 40 mm diameter, 8,000 rpm, 5.5 kW
Machine without machining tools.
The additional screen on the front of the machine is not included in the scope
of delivery (belongs to the window system).
(technical information according to the manufacturer - without guarantee!)
