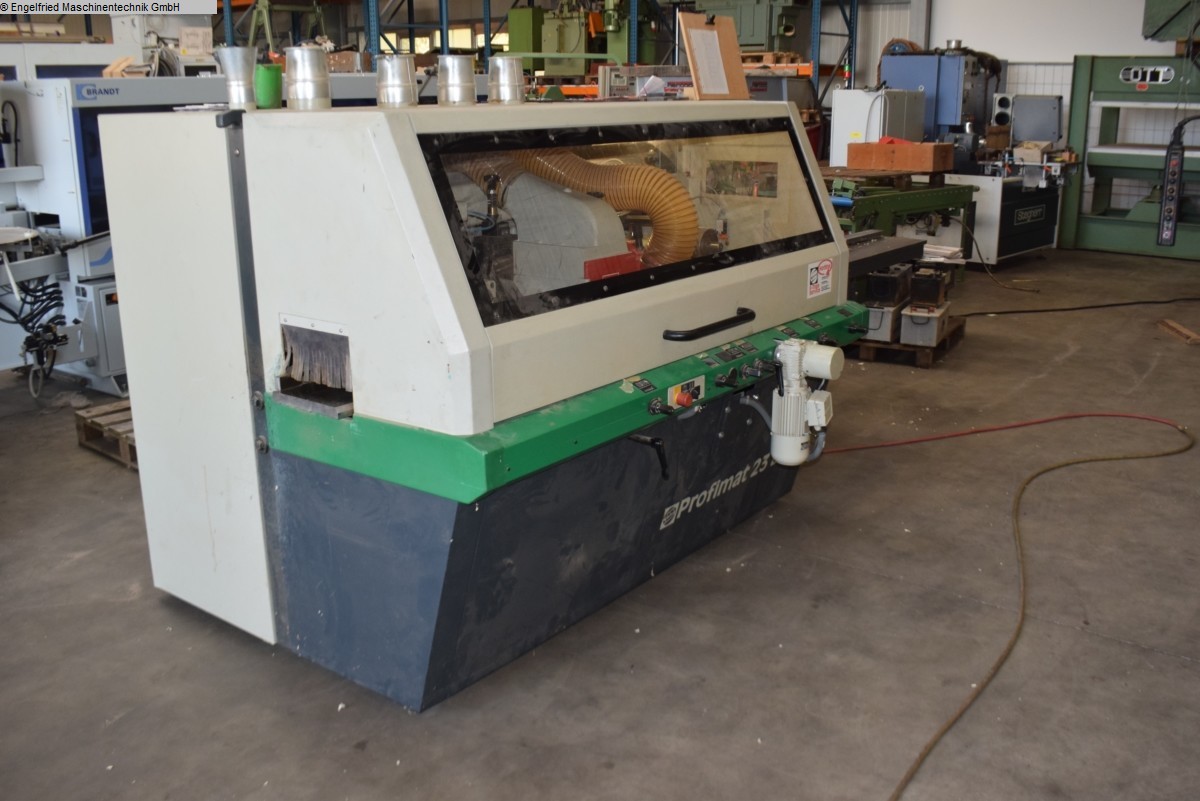

Weinig four-side planer Profimat 23 window version with
glazing bead removal,
ATS control and program control
-------------------------------------
Machine will be checked !

Technical data summary
(please inquire about any additional accessories included)
-------------------------------------

Generally
-------------------------------------
> Working width: 230 mm
> Working height: 120 mm
> Number of spindles: 6 pieces.
> Dressing table length: 2500 mm
> Feed speed: 5-24 m/min
> Total power requirement: 27 kW
> Dimensions: 3900 x 2200 x 2000 mm
> Machine weight, approx.: 2500 kg

Spindle arrangement
-------------------------------------
> Spindle 1: bottom
> Spindle 2: right, pneumatically clocked up-down
> Spindle 3: left
> Spindle 4: top
> Spindle 5: bottom
> Spindle 6: Glass bead saw pneumatically up and down

Spindle description
-------------------------------------
> Spindle 1: 4 kW, 6000 rpm, 40 mm diameter
> Spindle 2: 7.5 kW, 6000 rpm, 40 mm diameter
> Spindle 3: 6000 rpm, 40 mm diameter
> Spindle 4: 5.5 kW, 6000 rpm, 40 mm diameter
> Spindle 5: 4 kW, 6000 rpm, 40 mm diameter
> Spindle 6: Glass bead saw 2.2 kW, 6000 rpm, 40 mm diameter

Other features
-------------------------------------
> Glazing bead removal
> ATS control, automatic 2-axis positioning for width and height (left and
upper spindle) with program memory 99 programs
> Machine operation: window package
Joint control of the right spindle and the glazing bead removal via manual
selector switch in the control panel
> Spindles with mechanical digital display


Option:
used planer heads

(technical data according to the manufacturer - no guarantee!)
