| Szczegóły oferty | |
| Sklad numer | 1305-2753 |
| Typ maszyny | Prasa do ram |
| Fabrykant | HESS |
| Typ | Speedy |
| Rok budowy | gebraucht |
| Rodzaj sterowania | konventionell |
| Miejsce skladowania | Oberkochen |
| Kraj pochodzenia | Germany |
| Czas dostawy | after arrangement |
| Podstawa Transportowa | ex warehouse |
| Working width | 3500 mm |
| Working height | 2550 mm |
| Number of cylinders | 6 St. |
| loading dimensions L x W x H | 4500x950x2900 mm |
| weight | 1800 kg |
Hess Speedy frame press
--------------------------------------
will be checked
Insertion dimension / pressing length max. 3,500 mm
Insertion dimension / pressing height max. 2,550 mm
Sliding carriage for width adjustment locking in 50 mm
Double hole grid system
Electric height adjustment of the long-stroke cylinders (hydraulic)
Insertion height of the abutment plates can be preselected in 4 positions
3 vertical printing cylinders stroke 1000 mm
Pressure force per cylinder 2000 kN / 20000 N
3 horizontal printing cylinders stroke 80 mm
Pressure force per cylinder 1250 kN / 12500 N
Printing plate depth 100 mm width 140 mm
Grid for cylinder fixation/rear bearing 50 mm
Medium pressure beam with shut-off valve
Final pressure switch-off and pressure control
Control and pressing process in touch button operation
Adjustable pressing pressure min. 25 max. 160 bar
Electrical connection 2.2 kW / 400V

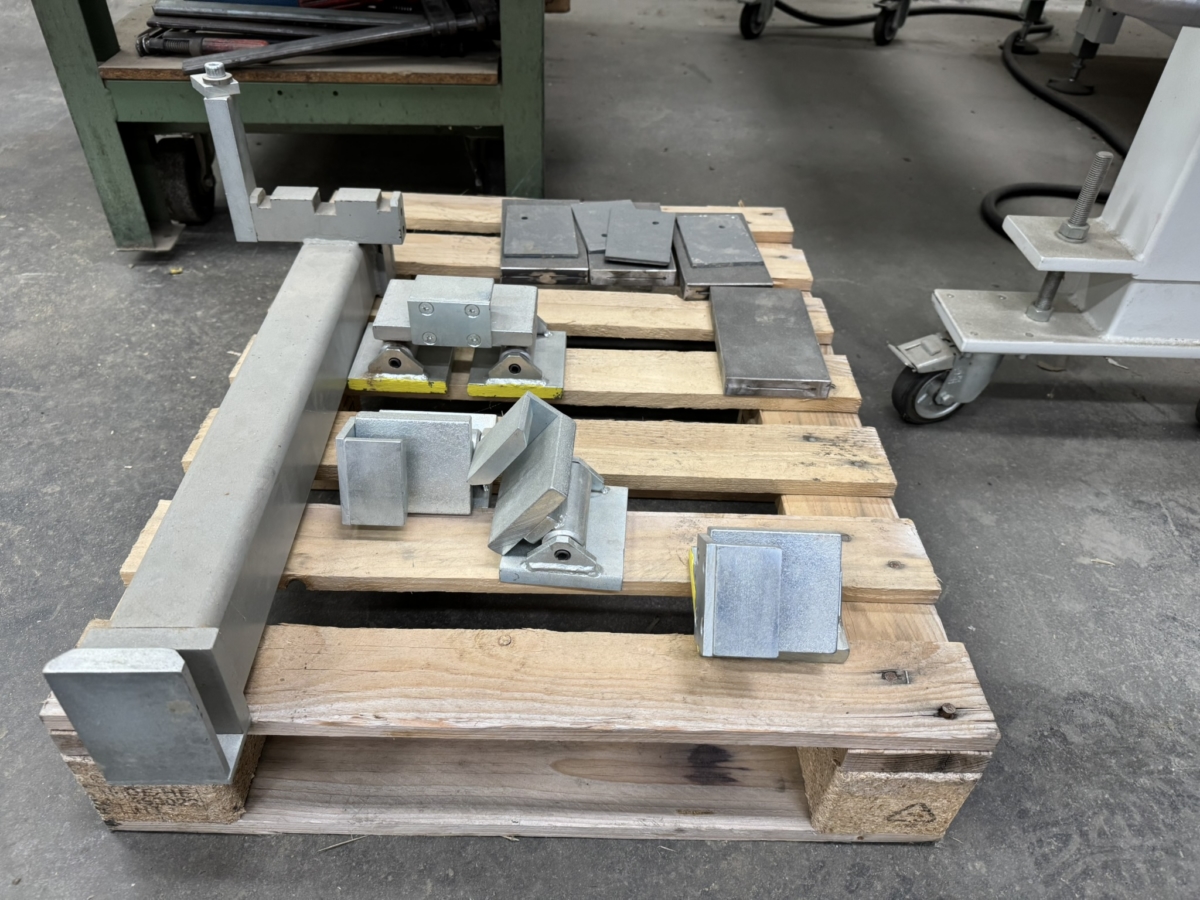

Image and video not original, show identical model
--------------------------------------
(technical data according to the manufacturer - no guarantee!)
