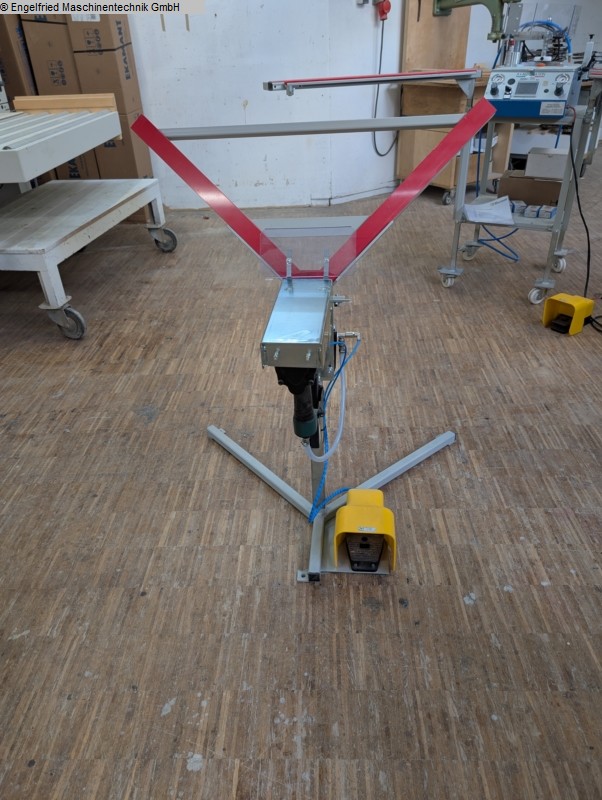

Painting aid for painting the sash and glazing bead frame at the same time

RU-LH painting aid for glazing bead frames
for processing staples L=50mm
Length 700 mm, width 500 mm, working height
adjustable from 700 - 1200 mm. At the 4 corners
1 bracket is placed on each of the glazing bead frames.
The positioning is done diagonally and in such a way that
the brackets protrude approx. 35 mm from the wood,
When pressed into the sash frame, a
clamping. The glazing bead frame is ready for painting
Positioned at a distance of approx. 20 mm in front of the sash.
After drying or before installing the sash
the glazing bead frame is flush with the sash
pressed and only removed again before glazing.
The clamps can then be pulled out again by hand
become. Stand frame with support table vertical 85°,
adjustable in inclination. 2 pieces compensation frames
for different glazing bead thicknesses, operation via
foot valve.

Price on request plus packaging and shipping

Option with extra charge:
Package of brackets 26 x 50 mm, 4,300 pieces each
EUR 74.00

You can find recordings of the painting aid at the end of the video below!

(technical information according to manufacturer - no guarantee!)
