| Szczegóły oferty | |
| Sklad numer | 1305-6937 |
| Typ maszyny | Pi?a kulkowa z elementem ?lizgowym |
| Fabrykant | WEGOMA |
| Typ | DS 2750 E1 |
| Rok budowy | 2020 |
| Preis | 19900.00 EUR |
| Rodzaj sterowania | konventionell |
| Miejsce skladowania | Deutschland |
| Kraj pochodzenia | Germany |
| Czas dostawy | approx. july 2025 |
| Podstawa Transportowa | ex location |
| Number of motors | 2 Stück |
| 0 | 2800 mm |
| Control | ja yes |

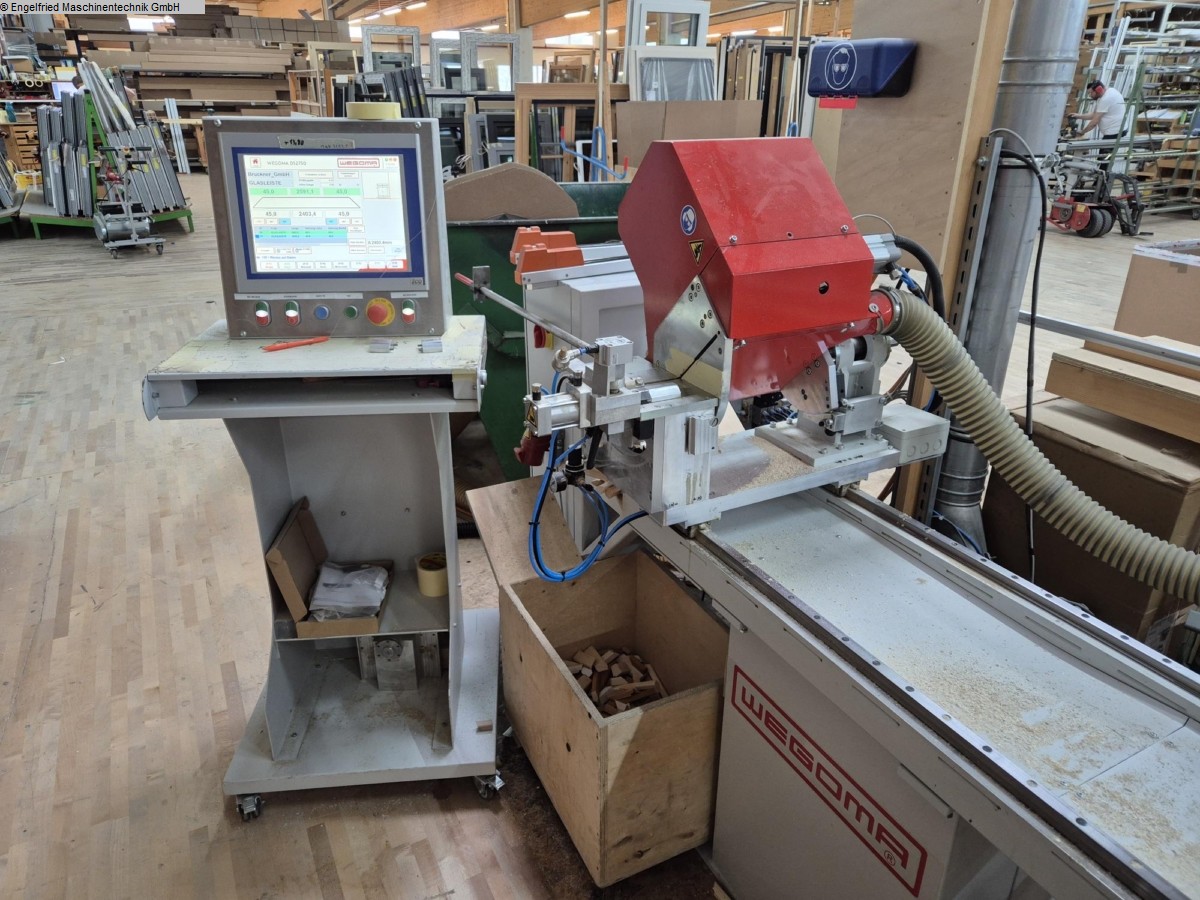

WEGOMA Double Miter Saw DS 2750 E1
--------------------------------------
Sold on customer order from the location, can be viewed in operation!
Item 1 Wegoma Double Miter Saw 2750 E1, 2800 mm
--------------------------------------
For wooden glazing beads, muntins,
profile strips, aluminum strips, etc.
Working length 2800 mm,
with pneumatic saw feed via high-precision linear guides,
center support, horizontal clamping.
Including manual tilting device. Clamping of the tilt and
X-axis position via high-performance clamping elements.
Head tilting 22.5/90/135 degrees, continuously adjustable, manually.
Including EPS 220 positioning control
--------------------------------------
for precise length positioning.
With touch panel (dust and splash-proof) display
for entering cutting data manually or via data integration.
- Ethernet connection 10/100 (TCP/IP)
- USB interface
- Data transfer possible via USB or network.
Includes control cabinet, motor, and software licenses.
- Automatic cutting (can only be activated via software in conjunction with
access protection)
2 carbide saw blades
Item 2: Combined workpiece clamping
--------------------------------------
from the front and from above. Instead of horizontal clamping.
(Technical specifications according to the manufacturer - no guarantee!)
