| Предложение в детялях | |
| Инвентарный номер | 1305-2782 |
| Тип оборудования | Surfacing machine |
| Производитель | MAPO |
| Тип | SPU 180 |
| Год производства | 1995 |
| Тип управления | konventionell |
| Место нахождения | Oberkochen |
| Страна происхождения | Germany |
| Срок поставки | immediately |
| Условия отгрузки | ex warehouse |
| Working width | 250 mm |
| Number of knives | 1 z= |
| Working height | 180 mm |
| Dimensions (L/W/H) | 1060, 700,1450 mm |

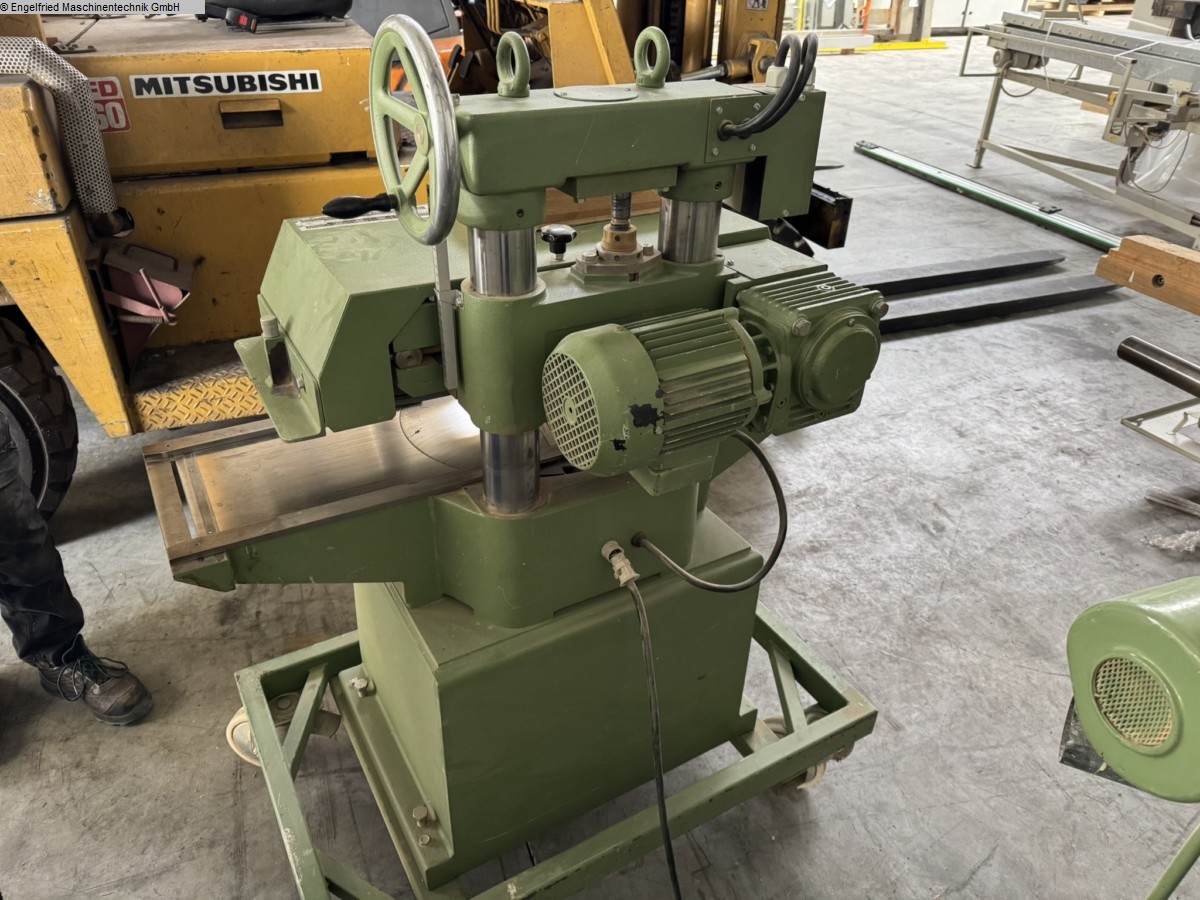

1 MAPO finishing machine SPU 180
---------------------------------------
with automatic feed, chip removal from below
Working width
with tool setting 0 degrees - 40 degrees: 250 mm
with tool setting 60 degrees: 165 mm

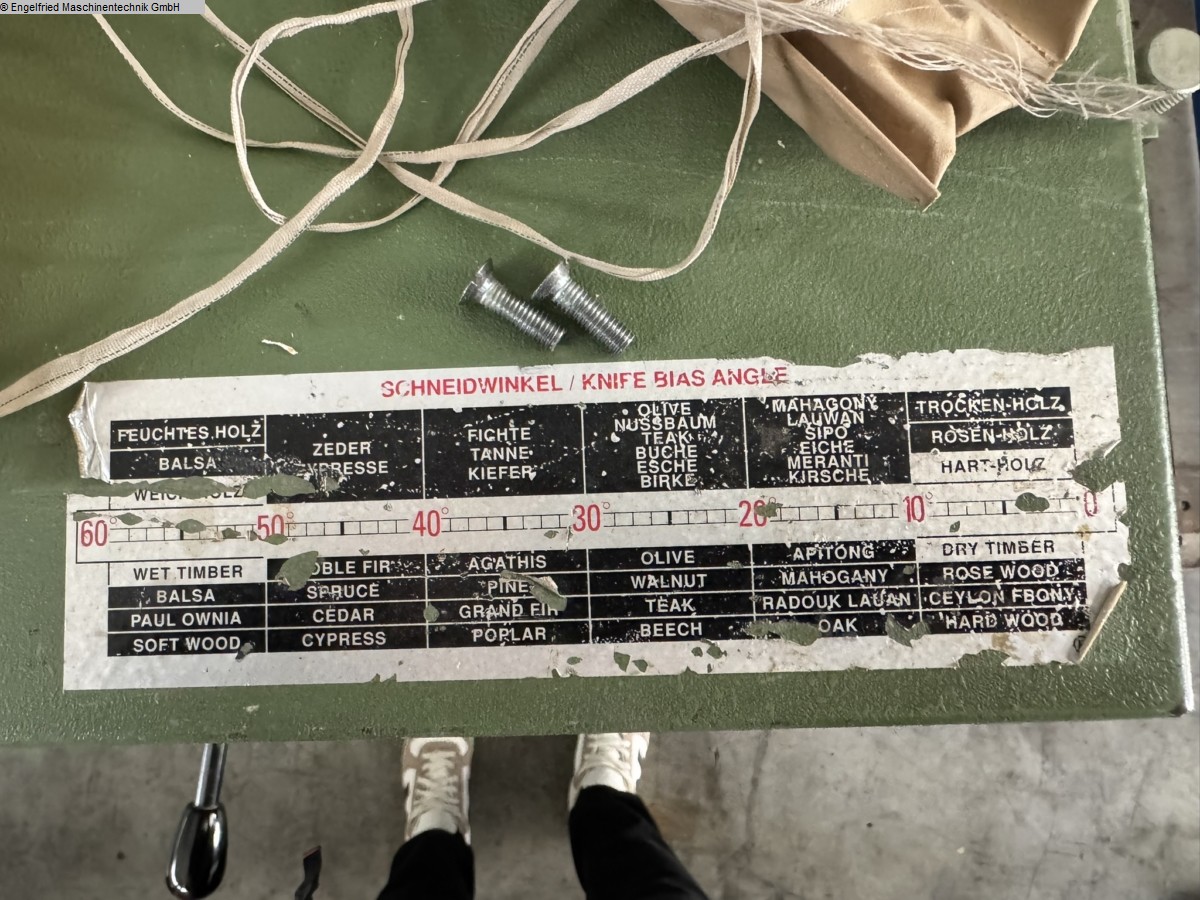

Knife block adjustable from 0 - 60 degrees depending on the type of wood
maximum chip thickness 3/10 mm
Motor 1.5 kW
Constant feed 50 m/min.

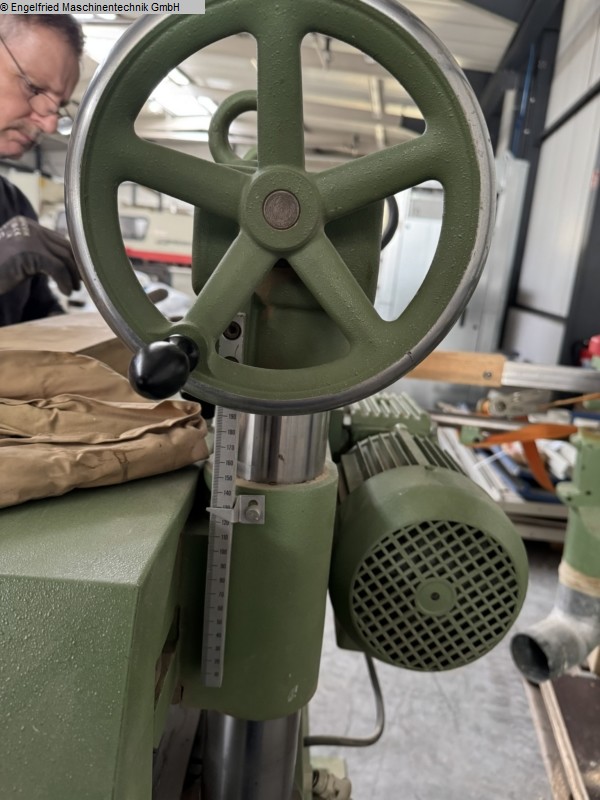

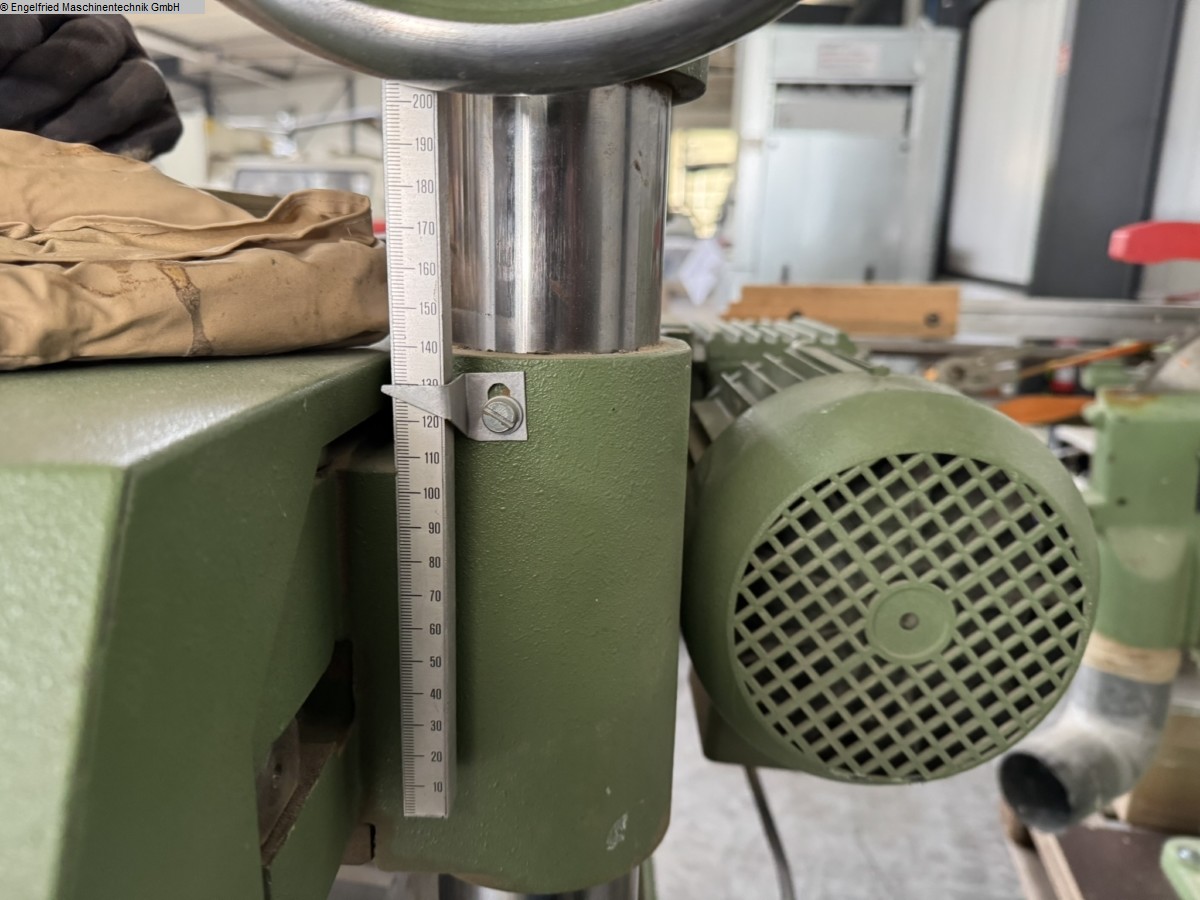

Passage height adjustable by handwheel from 1 - 180 mm
with chassis.

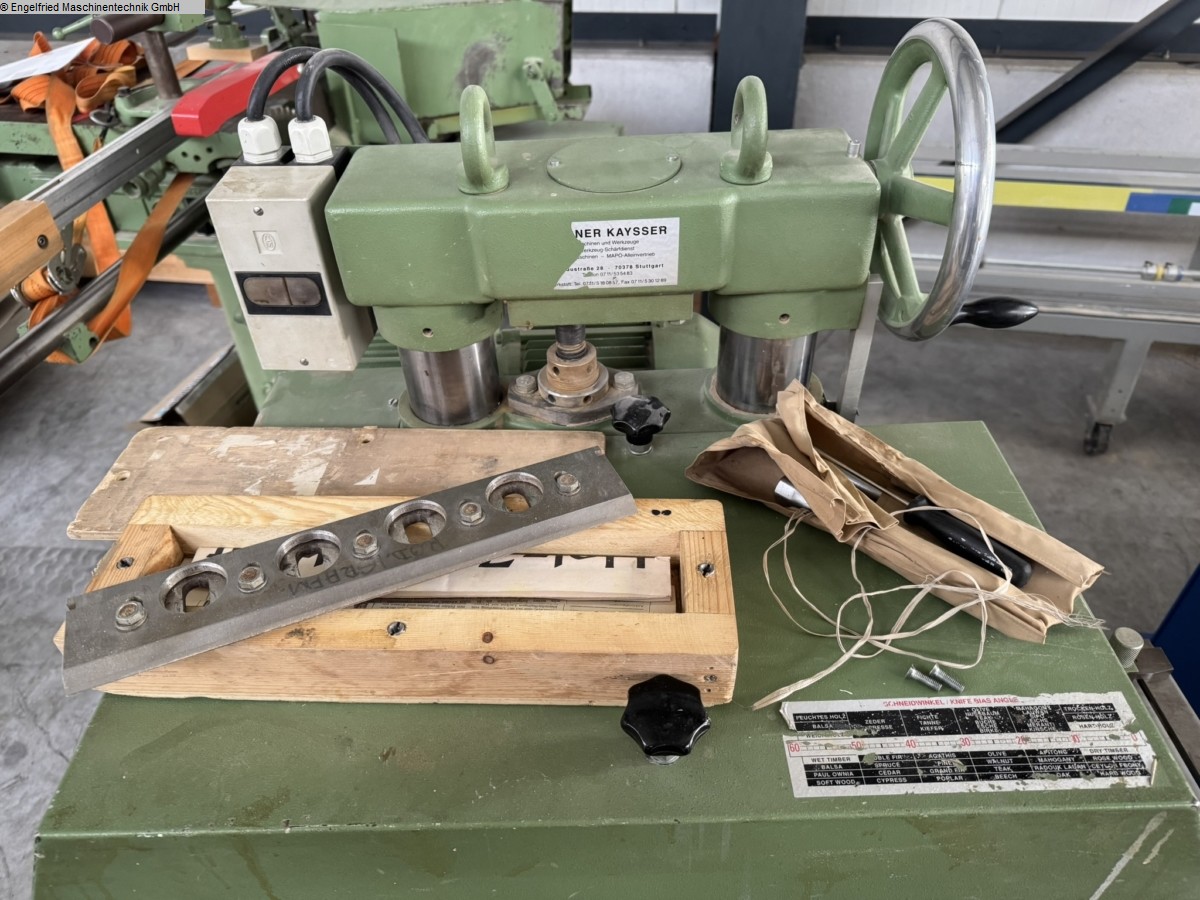

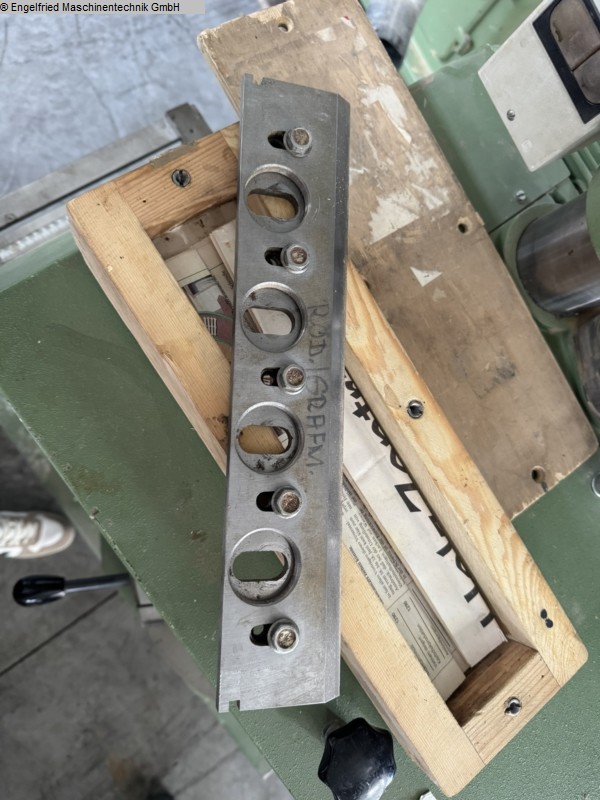

Includes 1 knife block on the machine and 1 additional knife block
(technical information according to the manufacturer - no guarantee!)
