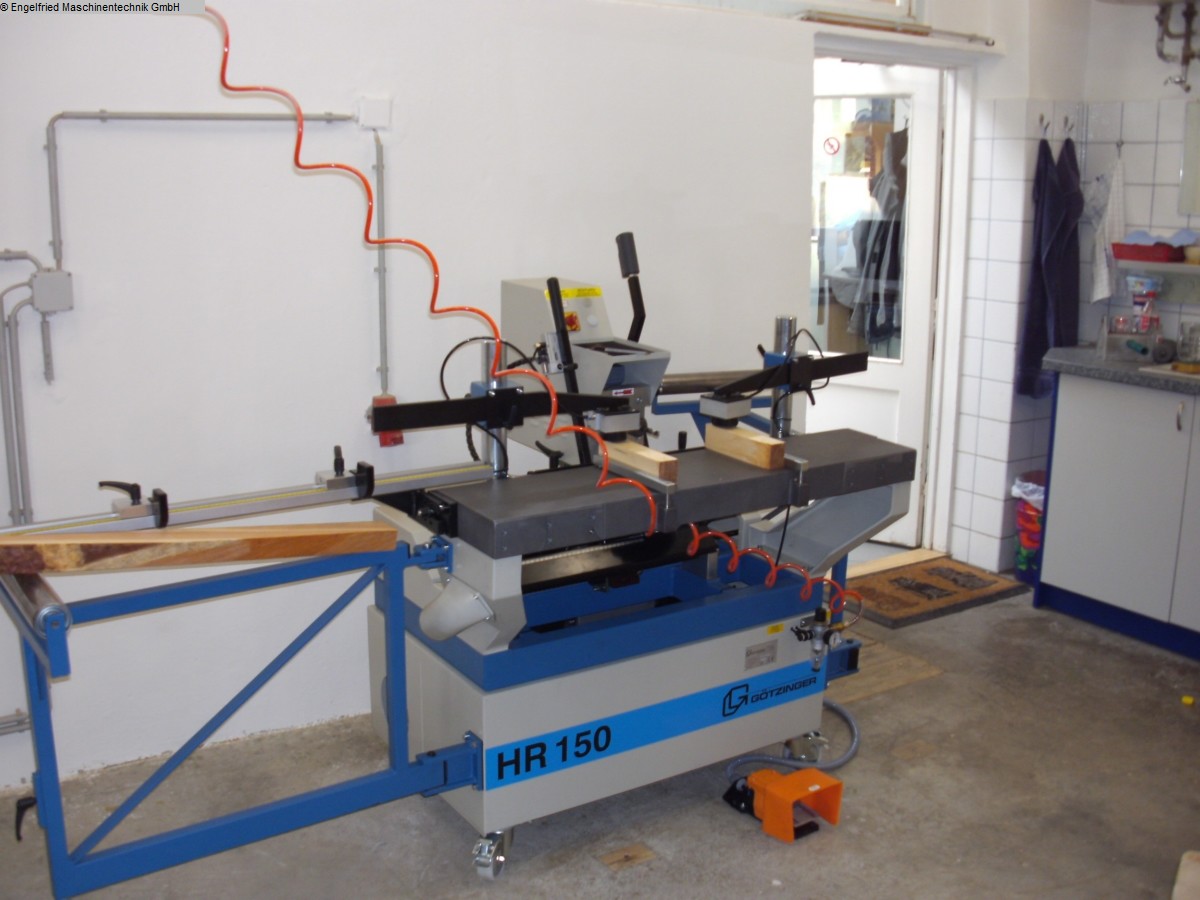

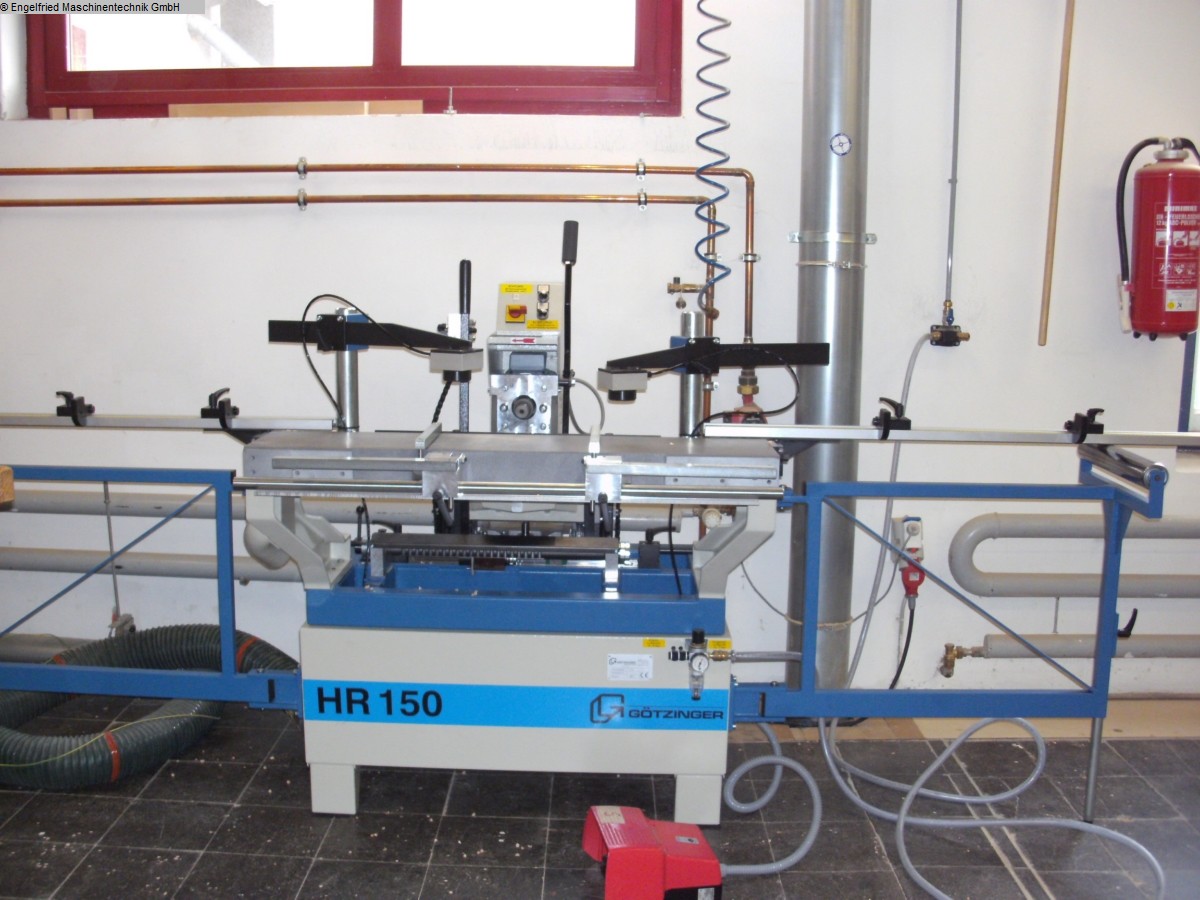

Götzinger HR 150 - Hoffmann system

The machine that gives you the highest precision when drilling
two levels guaranteed.

Frame and slot drilling machine, enables drilling in
two levels in one clamping.

- Well thought-out, precise and practical stop system

- particularly smooth and play-free grid positioning,
Feed and transverse adjustment

- Guidance systems for the highest demands

- Special drill chuck - precise, quiet concentricity

- for drilling levels via digital display

- Two side stops offer enormous advantages, center stop on request

- Continuous front stop with position markings

- Drilling pattern depending on the wood profile - free choice, in a 12 mm grid
Special grids also possible

- integrated dust extraction

- the exchangeable additional equipment (e.g. drill heads,
Miter stops, parapet railing device, side
and folding stops) can be easily installed without tools.
and dismantle.

Technical data:
********************

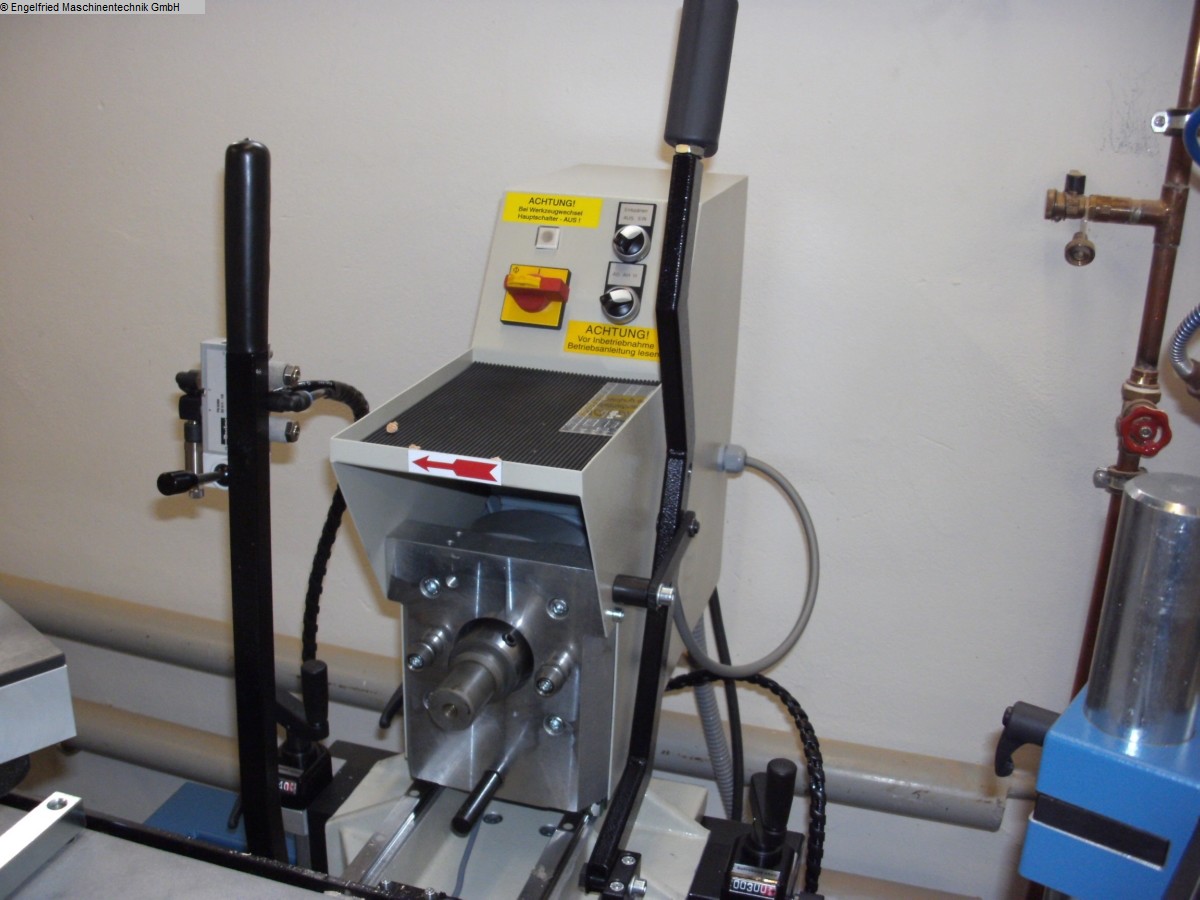

Drilling unit
------------------
Height adjustment in 2 levels via digital display
Height adjustment 100 mm pneumatically
Drilling stroke/depth 150 mm by hand
Transverse adjustment 320 mm via grid
Drilling pattern width 12 mm pitch, standard
Three-phase motor 230/400 V, 50 Hz, 1,420/2,840 rpm, 1.3-1.8 KW

Tool holder
---------------------------
Special drill chuck with 2 tool changing inserts 1 x M10, 1 x D 16

stop system
----------------------
2 side stops can be swiveled in/out
1 longitudinal stop (tube) with adjustable folding stop approx. 1500 mm
Elongated hole stop left and right

Workpiece clamping
---------------------------
pneumatically via foot valve

Dust extraction

Special accessories - see PDF attachment


(technical data according to manufacturer - no guarantee!)
