Offer details | |
Stock No. | 1305-2719 |
Type of machine | Frame press |
Make | HESS |
Type | Speedy Video |
Year of production | gebraucht |
Typ of control | konventionell |
Storage location | Oberkochen |
Country of origin | Germany |
Delivery time | after arrangement |
Freight basis | ex warehouse |
Working width | 3550 mm |
Working height | 2250 mm |
Number of cylinders | 5 St. |
loading dimensions L x W x H | 4500 x 900 x 2600 mm |
Hess Speedy frame press
--------------------------------------
Press will be Checked
Insertion dimension / pressing length max. 3,550 mm
Insertion dimension / pressing height max. 2,250 mm
Sliding carriage for width adjustment locking in 50 mm
Double hole grid system
Electric height adjustment of the long-stroke cylinders (hydraulic)
Insertion height of the abutment plates can be preselected in 4 positions
3 vertical printing cylinders stroke 1000 mm
Pressure force per cylinder 2000 kN / 20000 N
2 horizontal printing cylinders stroke 80 mm
Pressure force per cylinder 1250 kN / 12500 N
Printing plate depth 100 mm width 140 mm
Grid for cylinder fixation/rear bearing 50 mm
Medium pressure beam with shut-off valve
Final pressure switch-off and pressure control
Control and pressing process in touch button operation
Adjustable pressing pressure min. 25 max. 160 bar
Electrical connection 2.2 kW / 400V
Control for studio window gluing
2 pendulum pressure plates 45 degrees
Machine dimensions W=4500 mm, D=900 mm, H=2600 mm
Weight approx. 1800 kg

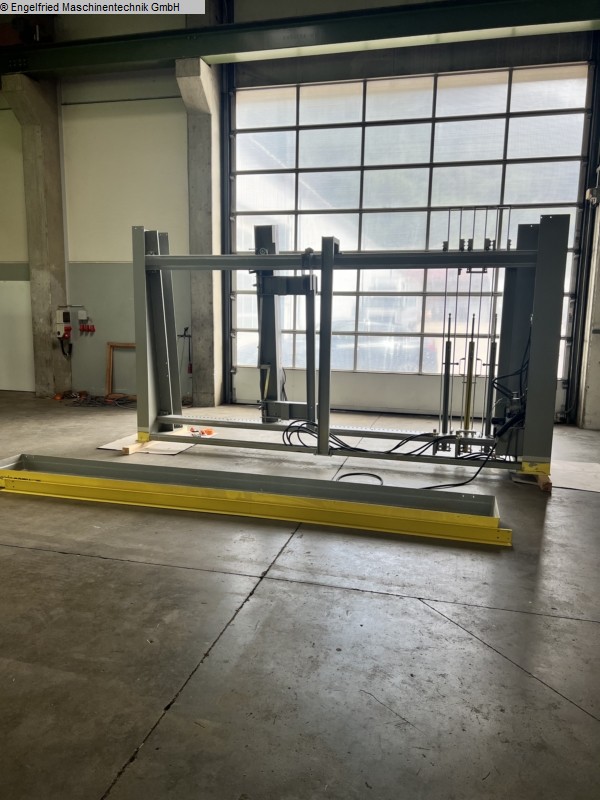

Photo and video not original, shows press of same type.
(technical data according to the manufacturer - no guarantee!)
