| Offer details | |
| Stock No. | 1305-2723 |
| Type of machine | Frame press |
| Make | HESS |
| Type | Speedy |
| Year of production | gebraucht |
| Typ of control | konventionell |
| Storage location | Oberkochen |
| Country of origin | Germany |
| Delivery time | immediately |
| Freight basis | ex warehouse |
| Working width | 3550 mm |
| Working height | 2250 mm |
| Number of cylinders | 5 St. |
| loading dimensions L x W x H | 4500 x 900 x 2600 mm |

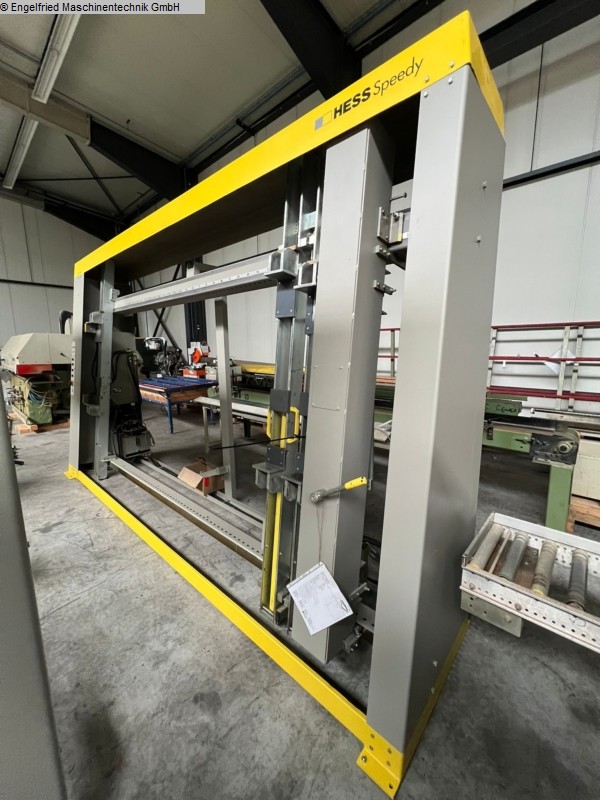

Hess Speedy frame press
---------------------------------------
Machine is being checked
Insertion dimension / press length max. 3,550 mm
Insertion dimension / press height max. 2,250 mm
Sliding carriage for width adjustment, locking in 50 mm
Double hole grid system
Electrical height adjustment of the long-stroke cylinders (hydraulic)
Insertion height of the abutment plates can be preselected in 4 positions
3 vertical pressure cylinders stroke 1000 mm
Pressure force per cylinder 2000 kN / 20000 N
2 horizontal pressure cylinders stroke 80 mm
Pressure force per cylinder 1250 kN / 12500 N
Pressure plate depth 100 mm width 140 mm
Cylinder fixation / abutment grid 50 mm
Medium pressure beam with shut-off valve
Final pressure shut-off and post-pressure control
Control and press sequence in touch button operation
Adjustable pressing pressure min. 25 max. 160 bar
Electrical connection 2.2 kW / 400V
Control for gluing sloped windows
2 pendulum pressure plates 45 degrees
Machine dimensions W=4500 mm, D=900 mm, H=2600 mm
Weight approx. 1800 kg
Image and video not original, show identical model
(technical data according to manufacturer - no guarantee!)
