CNC machining center at a Special PRICE!

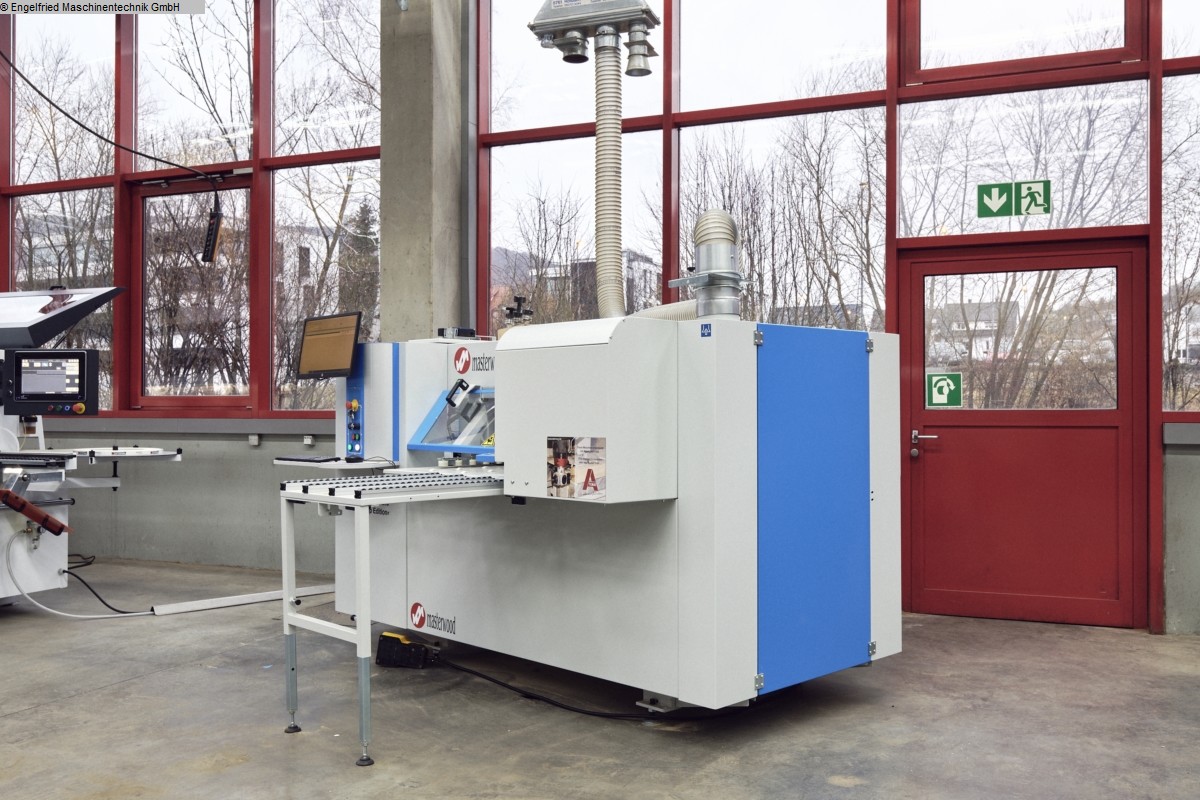

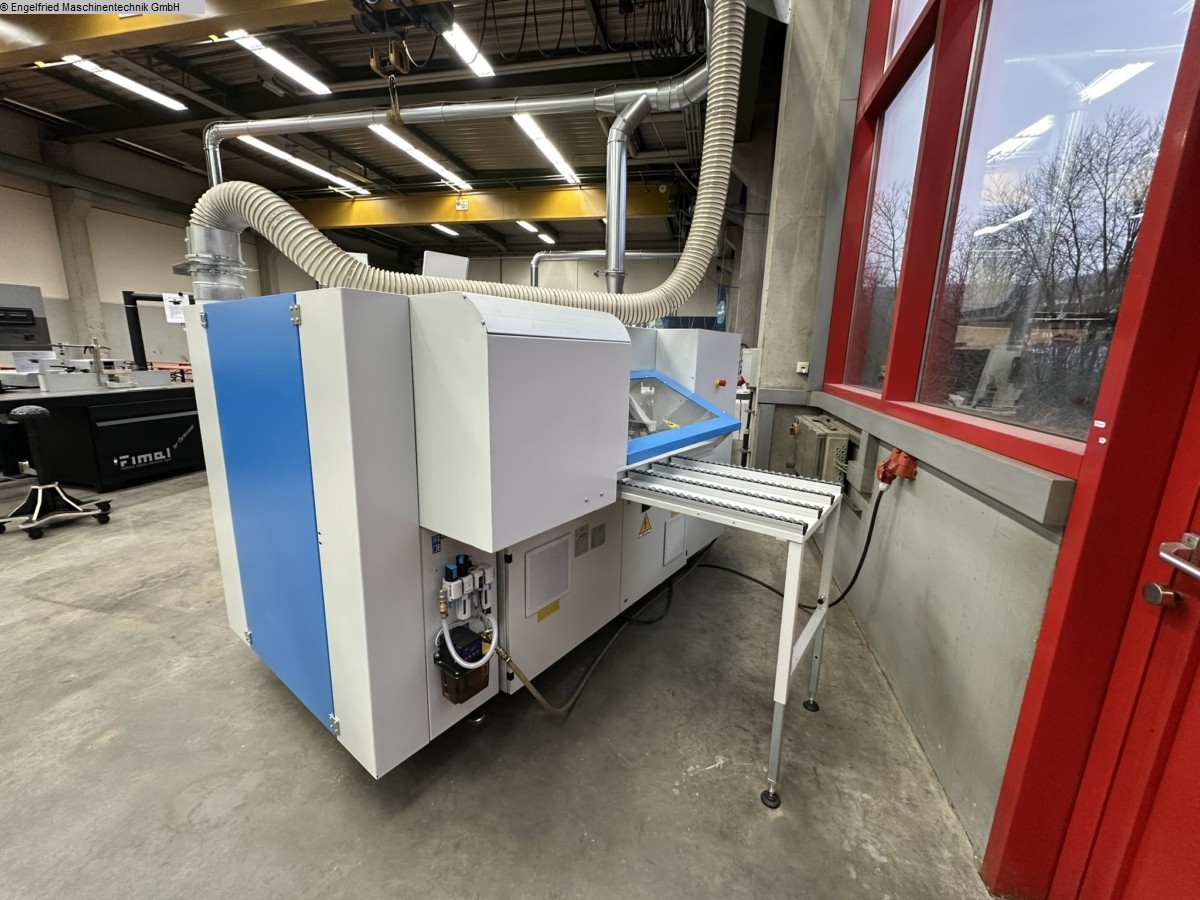

MASTERWOOD TF 100 2.0 Partnership Edition

Furnishing:
-----------------------------------------------------
- Drilling head with 16 drills for 5-sided machining
- Grooving saw unit
- Milling unit with 6-fold tool changer
- incl. grooving saw blade, 2 diamond cutters, 1 WPL finishing cutter
- Preparation for CLAMEX and door package
- 2 foldable roller conveyors
- program-controlled central lubrication
-----------------------------------------------------

SPECIAL PRICE 44,990.00 euros (plus VAT) ex works

-----------------------------------------------------

Freight, installation, instruction within Germany
including 8-hour training individually and on site
SPECIAL PRICE 3,000.00 euros (plus VAT)


Partnership Edition Options:
-----------------------------------------------------

Complete package for CLAMEX connectors consisting of:
-----------------------------------------------------
- Angular gear with CLAMEX cutter incl.
special recording in the tool changer and software adjustment
- Original Lamello tool package: 2x P-System diamond milling cutters, milling
arbor
- Voucher for 300 pairs of CLAMEX P-14, 80 pairs of TENSO P-14

SPECIAL PRICE 3,500.00 euros (plus VAT)

Complete door package consisting of:
-----------------------------------------------------
- Angular gear with lock case cutter, special mount in
- Tool changer, software adaptation including macro for lock case

SPECIAL PRICE 3,500.00 euros (plus VAT)

Software package PaletteCAD start + CAM connection
-----------------------------------------------------
Our premium software with a perfectly coordinated CNC interface - with us
of course already including CLAMEX macro.

SPECIAL PRICE 3,000.00 euros (plus VAT)


Promotional prices valid while stocks last. Subject to prior sale.


Detailed description:
The Masterwood CNC machining center PROJECT TF
is ideal for complex CNC machining in the smallest of spaces,
both for solid wood, panel materials or others
Materials.

Advantages:
- Very small footprint
- Maximum time savings thanks to extremely fast production times
- Fast amortization due to the low purchase price
- Fast learning of the technology through the simplest operation
- Cleanliness of the workpieces with low suction power due to processing
from underneath
- Extremely fast, easy and variable programming with the
Software MASTERWORK (standard)
- Extremely fast and easy programming complete
Cabinets through the use of TrunCAD (option)

Technical specifications:

Axles:
X-axis: Max. workpiece length: unlimited, Min. workpiece length: 250mm
Travel speed: 0-25 m/min.

Y-axis: Max. workpiece width: 1,000mm for all aggregates
Min. workpiece width: 80mm
Travel speed: 0-50 m/min.

Z-axis: Max. workpiece thickness: 60mm
Min. workpiece thickness: 10mm
Travel speed: 0-20 m/min.

The minimum and maximum workpiece sizes are
depending on the weight and also on the ratio
length to width!

Aggregates:
16 drilling head: vertical spindles in the X direction: 5 pieces
vertical spindles in Y direction: 5 pieces
horizontal double drilling spindle in X-direction: 2+2 pieces
horizontal double drilling spindle in Y-direction: 1+1 piece
Distance drilling spindles: 32mm
Spindle speed: 4,000 rpm.
Engine: 1.7kw
Grooving saw: in the X direction
Speed: 4,000 rpm.
Max. saw blade diameter: 125mm
Motor: 1.7 kW (The grooving saw is integrated in the drill head)

Steering:
Personal Computer HP Compaq 6000 Pro SFF PC
Processor: Intel Celeron E3300 @ 2.50GHZ
RAM: 1GB
Hard disk: 300GB
CD ROM drive
17'' LCD color screen
Video card integrated 512 MB
2 Ethernet cards
Interfaces: 2 serial RS 232 - 1 parallel - 10 USB -
1 ESATA
Keyboard: Input PS 2
Mouse: Input PS 2
Operating system: Windows 7 professional
Program: MASTERWORK MACHINE VERSION

Further data:
Required air pressure: 8 bar
Air consumption: max. 750 l/min.
suction:
Volume: 2,000 m³/h
Air speed: 25 - 30 m/sec.
Extraction nozzle: 1 x 150mm

Other features:
- Air tables at work area
- Roller table in the infeed and outfeed
- Sensor for plate measurement
- Ball screw and linear guides
- Rack and pinion drive
- Central lubrication
- Import of DXF files

"PARTNERSHIP EDITION" consisting of:

milling unit,
including MASTERWORK software extension
Speed: 1,000 to 18,000 rpm.
Motor: 4.5 kW with ISO 30 intake
incl. integrated suction control (when drilling
only the drill head, when milling only the milling unit
sucked off)

6-fold tool changer

3 ISO 30 cones including collet

Tool equipment, consisting of: HW dowel drill:
5 pieces 5mm - GL 70mm - blind hole drill
1 piece 5mm - GL 70mm - through drill
4 pieces 8mm - GL 57.5mm - blind hole drill
2 pieces 10mm - GL 57.5mm - blind hole drill bits
1 piece 10mm - GL 70mm - blind hole drill
1 piece 8mm - GL 70mm - blind hole drill
1 piece 15mm - GL 70mm - blind hole drill
1 piece 35mm - GL 70mm - blind hole drill
1 HW grooving saw blade d=125mm, bore=20mm, width: 3.2mm, Z=24 WZ
1 DIA cutter, right - GL=103mm, NL=43mm, D=18mm, shank: 20x50mm, Z 1+1
1 DIA cutter, left - GL=103mm, NL=43mm, D=18mm, shank: 20x50mm, Z 1+1
1 solid carbide finishing cutter, right, D=10mm

Foldable roller conveyor in the inlet and outlet

Automatic central lubrication

(Technical information according to the manufacturer - without guarantee!)
