| Offer details | |
| Stock No. | 1305-6752 |
| Type of machine | Glazing and control press |
| Make | RUCHSER |
| Type | RU-SW3-90° |
| Year of production | Neu |
| Typ of control | konventionell |
| Storage location | ab Werk |
| Country of origin | Germany |
| Delivery time | after arrangement |
| Freight basis | ex work |
| 0 | 2750 mm |
| Working height | 2500 mm |
| 0 | 300-1000 mm |

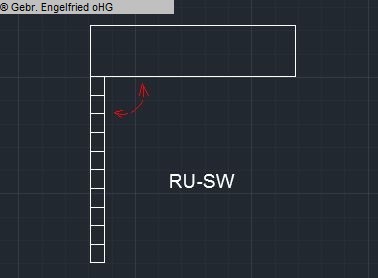

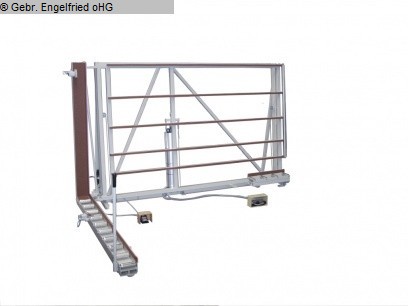

RUCHSER glazing and sealing table RU-SW3-90°
--------------------------------------
Vertical work table with lifting device and turning device. Particularly
suitable for glazing and sealing wooden windows on both sides.
Equipment:
System part covered with felt
Stepless pneumatic lifting device,
Stroke of 300 mm 1000 mm, based on roller conveyor height
Turning device for sealing on both sides, with 150 mm roller conveyor
Roll length
2 pneumatic clamps for clamping the window to the turning device
Version with special turning device for pushing through the on the
Roller conveyor set up window with applied (closed)
Turning device
Alternative/optional equipment on request!
Item 1.0: Item number: 1000000
RU-SW3-90° vertical work table for
Wooden window with turning device
Glazing and sealing on both sides
Angle length 1970 mm, opening angle 90°, max.
Working width 2750 mm, total length 3050 mm,
Total width 780 mm, system height 1600 mm, system area
with felt, left OR right one
Roll as edge protection for elements up to 2500 mm
Height. Pneumatic lifting device from 300 - 1000 mm.
Installation area as a roller conveyor with steel rollers,
Roll length and roll pitch 200 mm.
--------------------------------------
Total price in this version: on request!
--------------------------------------
Options with additional costs:
Item 1.1: Item number: 5202 EUR 710.00/piece
System part with rubber rollers,
Ø 48 mm, roller spacing. 50mm,
for RU-SW3-90° and RU-SWS3
Item 1.2: Item number: 7081 EUR 404.00/piece
Steel angle covered with felt
mounted above the roller strips
for RU-SW3-90°
These prevent the windows from rattling.
when pushing. The additional strips will
above all roller bars of the RU-S2
attached.
Item 1.3: Item number: 5056 EUR 129.00/piece
RU-AK-6 storage box 1000x120 mm,
6 compartments for hanging
into the roller conveyor
--------------------------------------
Total price in this version: on request!
Ex works plus packaging and shipping, plus VAT.
PDF brochure attached.
(Technical information according to the manufacturer - no guarantee!)
