| Offer details | |
| Stock No. | 1305-6847 |
| Type of machine | Cross cut saw |
| Make | SALVAMAC |
| Type | Legend 600 |
| Year of production | neu |
| Typ of control | konventionell |
| Storage location | ab Werk |
| Country of origin | Poland |
| Delivery time | ca. 6-8 Arbeitswochen |
| Freight basis | ex work |
| cutting width | max. 610 mm |
| Cutting height | max. 150 mm |
| Saw blade diameter | 600 mm |
| Motor output | 9,2 kW |
| turning speeds | 2750 U/min |
| Required air-pressure | 7 bar |
| work height max. | 900 +- 20 mm |
| Dimensions (L/W/H) | 770x1385x1370 mm |

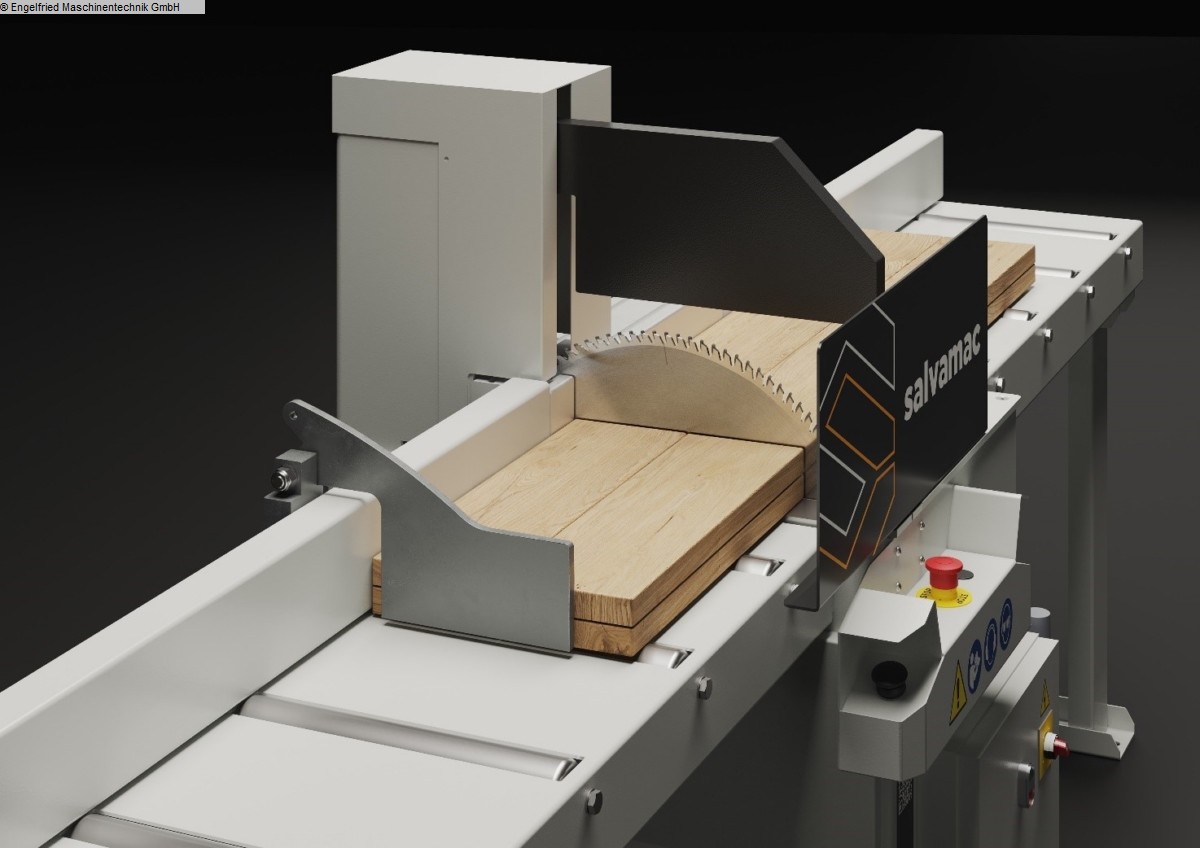

SALVAMAC Legend 600 the semi-automatic chop saw
-------------------------------------------------- -

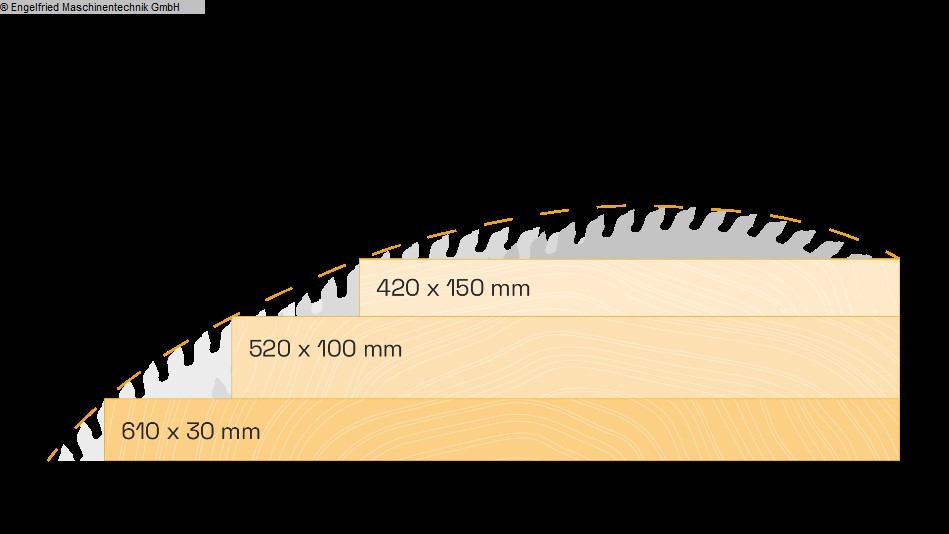

Maximum cutting area 420x150/520x100/610x30 mm
(When sawing stacked boards, note: rear stop height 100 mm)
The structure is made entirely of sturdy, thick-walled steel,
which is painted throughout and reinforced. A solid one
Floor mounting system is equipped with flanged steel feet,
to ensure secure attachment.

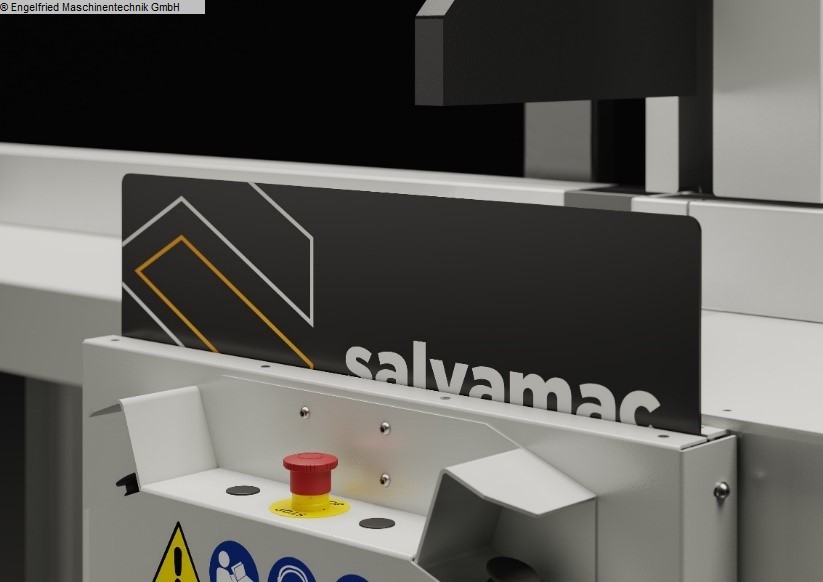

The two-hand control is ergonomically positioned for comfort
and efficient operation.
Engine power of the saw motor 9.2 kW.
The cutting speed is adjustable via a pneumatic controller,
to enable precise adjustment. The system also has a
Shock-absorbing system to minimize vibrations and ensure worker safety
to improve.
HM circular saw blade, diameter 600 mm, Z=132.

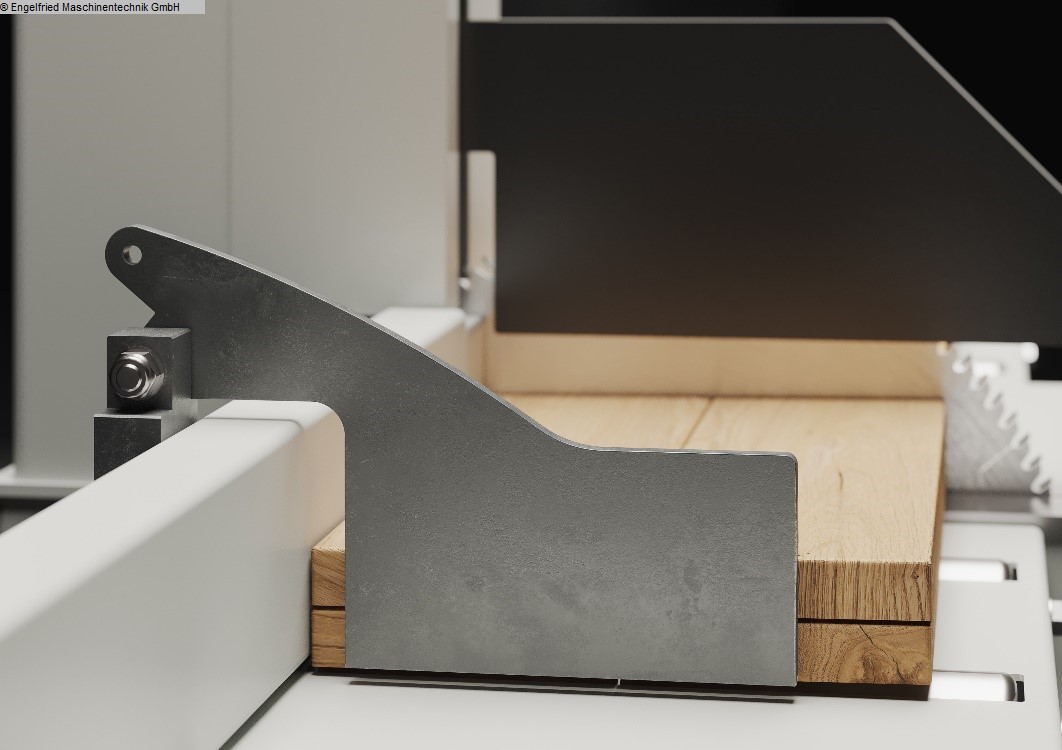

The upper pressure hood has an electro-pneumatic control for
precise operation. The pressure hood movement system is innovative
Ball bearings operated with double dust protection and automatic lubrication system,
which ensures smooth functionality.
In addition, the electrical system is compliant with CE standards. CE models

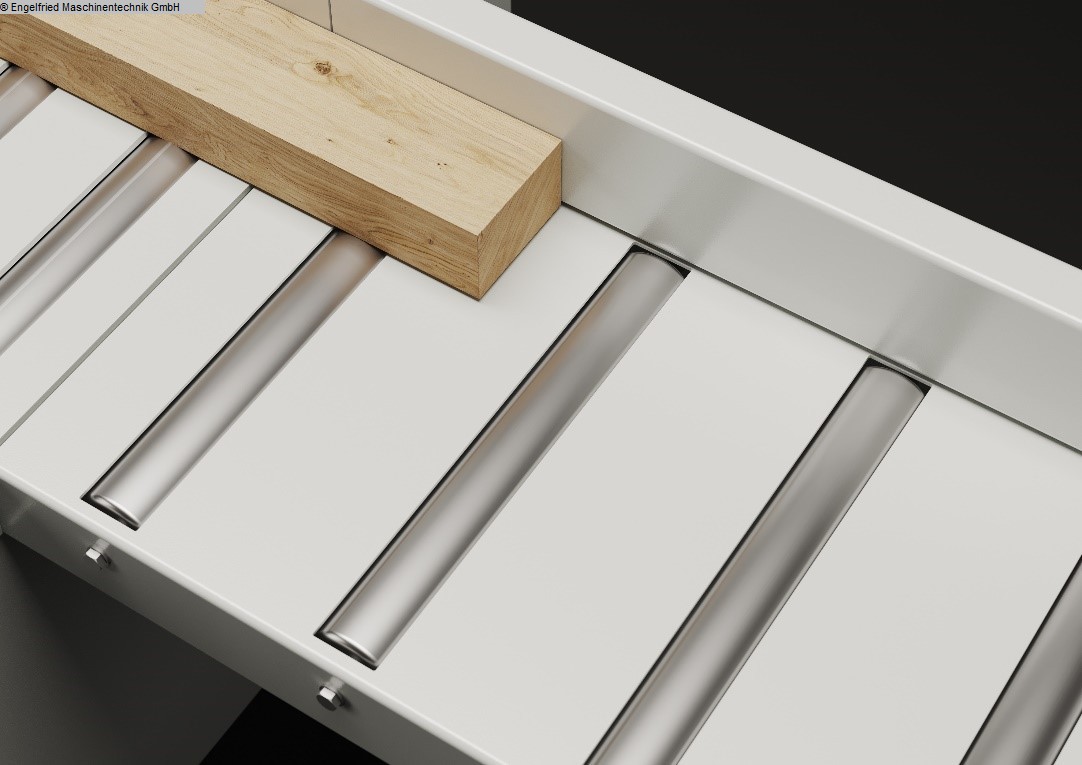

are standard with at least 1 meter long inlets and outlets
(undriven rollers or flat table) to facilitate operation
optimize and meet security standards.
Technical data:
-------------------------------
Saw cross section: 420x150/520x100/610x30 mm
Saw blade motor power: 9.2 kW
Saw blade diameter: 600 mm
Saw blade type: HM Z=132
Saw blade rotation speed: 2750 rpm
Air consumption per cycle: 7 Nl
Intake nozzle: 2 x 140 mm
Air pressure: 6 - 8 bar
Voltage: V 400/50 Hz 3 phase
Worktop height: 900 mm +- 20 mm
Color: Ral 7035
-------------------------------
Total price ex works: on request!
-------------------------------
Options like:
- Inlet/outlet with undriven rollers/flat table
- Mechanical or pneumatic stops
- Electronic length stop / slider Salvastop (Combo series)
- Movable front protection
and more on request!
-------------------------------
(technical data according to the manufacturer without guarantee!)
