Bimatic edge bander
Type Prima 7.5 Two
-----------------------------
Manufacturer's description:

Technical data:
Edge thickness: 0.4 - 5mm
min. Panel width (without rounding unit): 80 mm
min. Panel width (with rounding unit): 130 mm
min. Panel length (without rounding unit): 100 mm
min. Panel length (with rounding unit): 300 mm
min. panel thickness: 10 mm
max. panel thickness: 50 mm
Feed speed: 11 m/min
Suction nozzle: 3 x 150 mm
Connection: 9 kW - 400 V / compressed air: 6 bar

Aggregates:

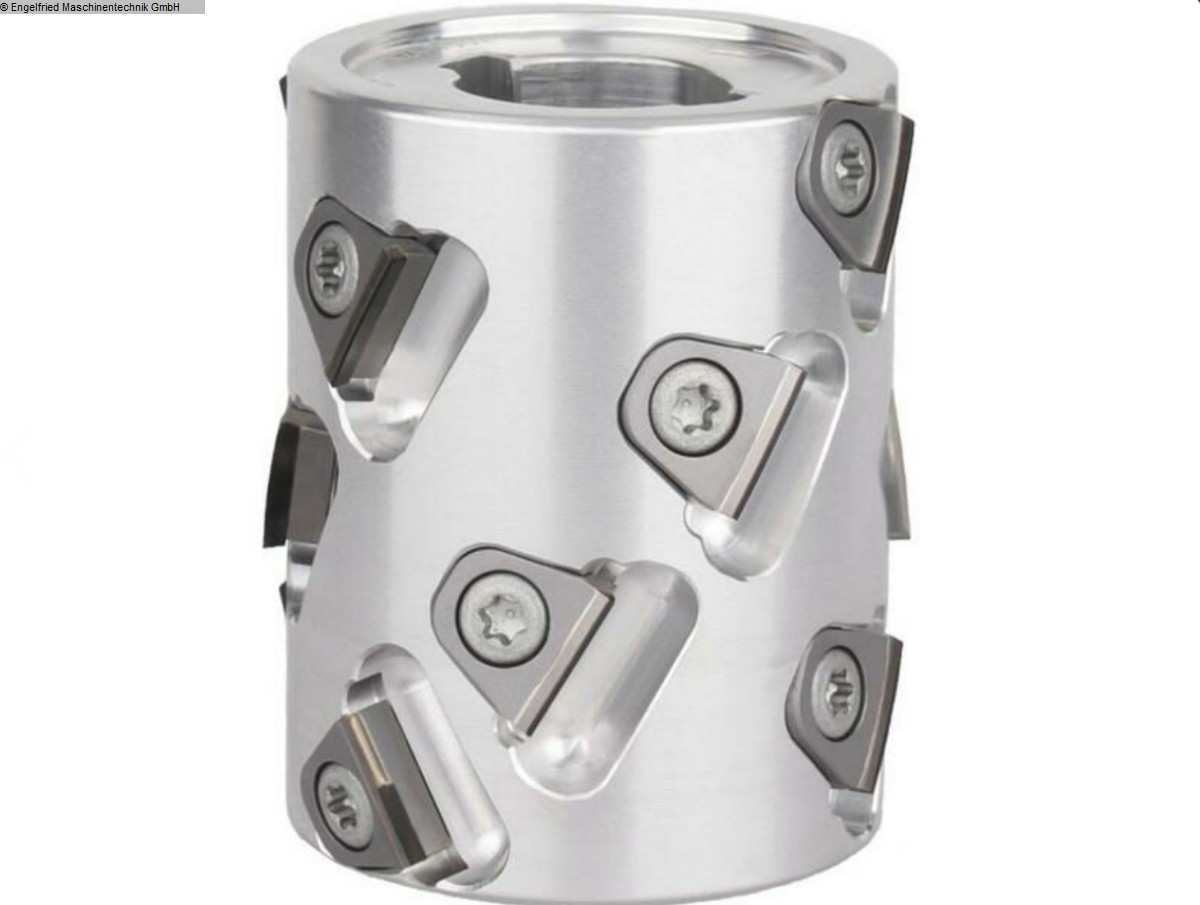

Jointing unit incl. AIGNER diamond jointing cutterheads, with DIA-
interchangeable knife system Konstantin and controlled edge blow-out nozzle
behind the 2nd jointing knife head.
Joining cutterhead.

Cross-cut saw unit with suction device incl. 2 pneumatically swivelling saw
blades saw blades, adjustable and programmable from the control panel.

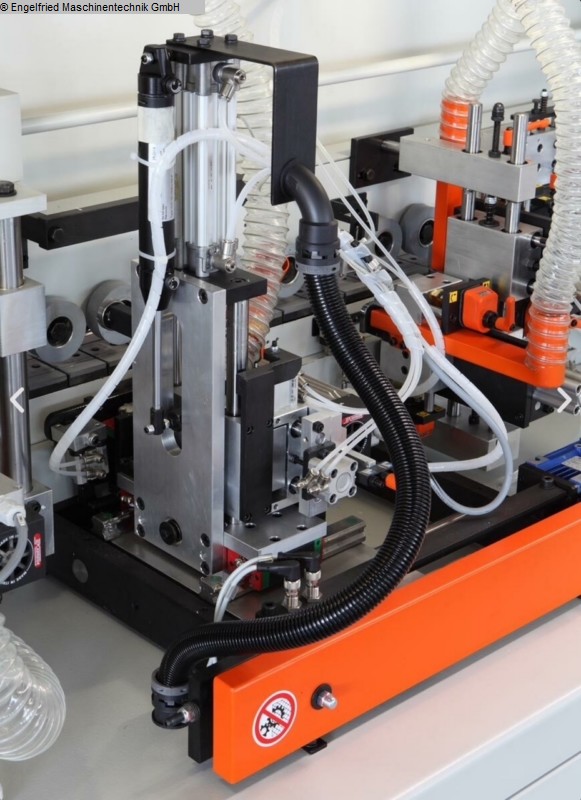

MULTI radius trimming unit with 4 servomotors, adjustable and programmable from
the control panel.
programmable from the control panel. Including DIAMANT cutter with radius 1mm
and radius 2mm.

Rounding unit (copy trimming unit) with insert shelf function and pneumatic
2-position turret, adjustable and programmable from the control panel. The
The complete unit can be pneumatically inserted and removed from the control
panel.
Including 1 quick-change motor with R=1mm and 1 quick-change motor with
R=2mm

MULTI radius scraper unit radius 1mm and radius 2mm with pneumatic 4-position
turret.
position turret. The unit can also be inserted and removed pneumatically
Including suction device with chip collection box for scraper chips.

Flat scraper unit with 4-fold usable scraper knives. The complete
The complete unit can be inserted and removed pneumatically. Remaining glue is
are sucked off.

Buffing unit with 2 diagonally arranged ORIGINAL Riepe cloth-sisal wheels for
cleaning and buffing.
lamellar wheels for cleaning and polishing

General equipment:
- 90° insertion aid

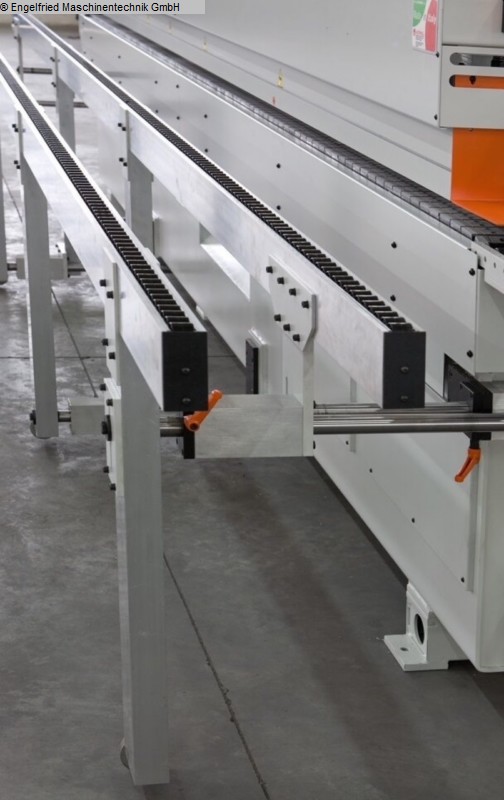

- Telescopic extension with double support
- Motorised adjustable infeed ruler (joint thickness adjustment) from the
control panel
adjustable and programmable
- Motorised adjustable top pressure bar adjustable and programmable from the
control panel
programmable
- Motorised adjustable pressure zone adjustable and programmable from the
control panel
programmable
- 5 mm version: Quick-change motors with insert-flush milling cutter
interchangeable with milling motors with radius milling cutter
- High-gloss package: Roller scanning for radius milling unit, radius scraper
unit and flat scraper unit
scraper unit and flat scraper unit

- Large viewing, noise and protection cabin for all units and for the glue pot
- Interior lighting

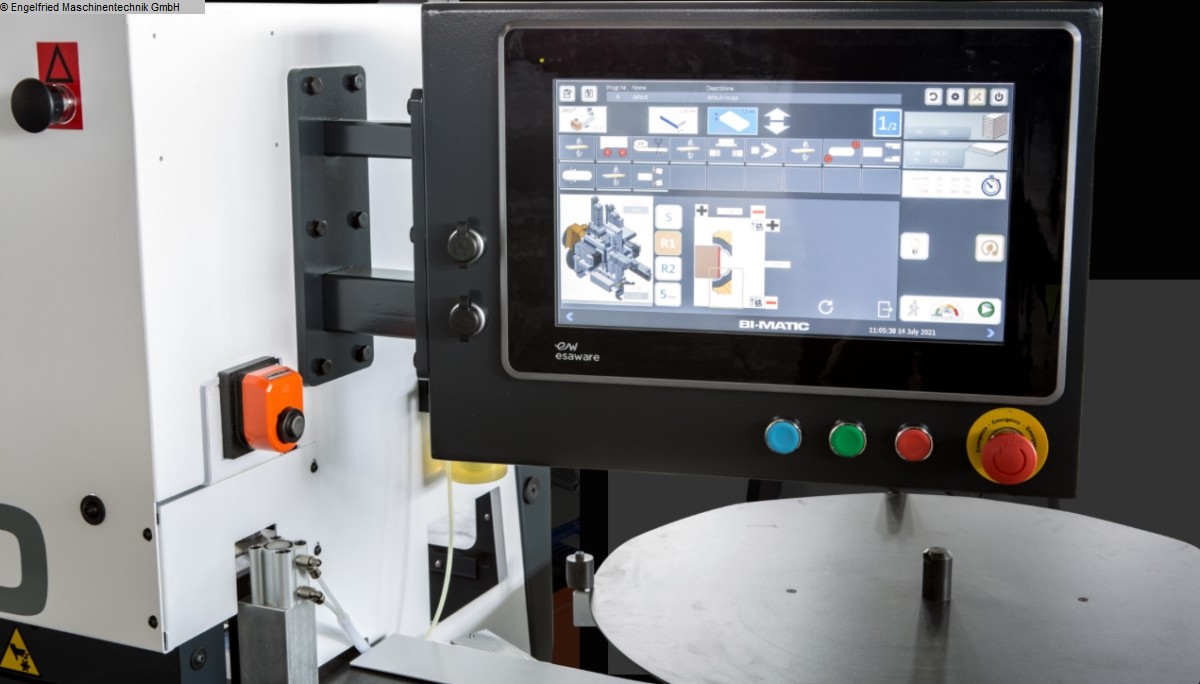

- Control panel with 15'' touchscreen and self-explanatory operator guidance
- USB port for data backup and data transfer
- Network connection for online support
- Controlled pneumatic cylinder for workpiece distance control

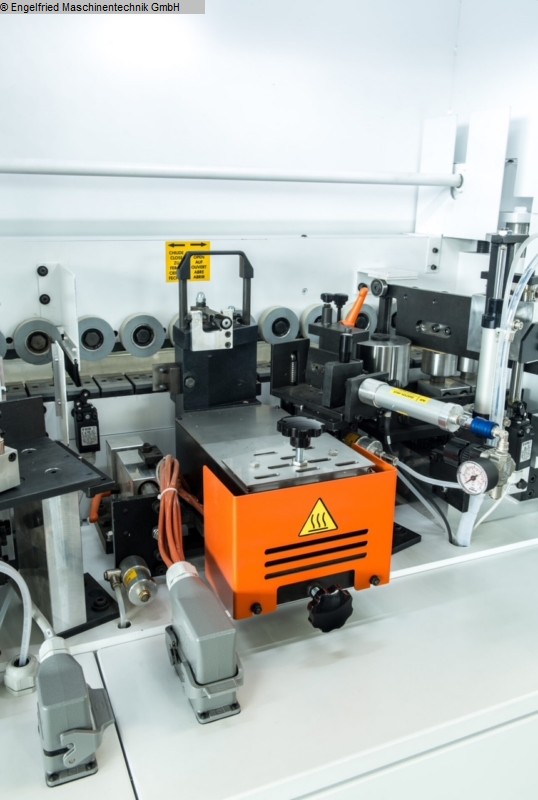

- Teflon-coated glue tray with quick-change system and energy-saving mode in standby
mode in standby
- Glue roller with screw conveyor for long and high workpieces (especially for PUR
glue)
- Additional quick-change glue tray
- Pressure zone with 3 pressure rollers, whereby the 1st pressure roller is motorised
is motorised
- Heavy roller snipping shears for edges 54 x 3 mm
- Original RIEPE spraying device
- In front of the joint trimming unit: LPZ II release agent
- In front of the sawing unit: Cooling and antistatic LP 289/99
- Before the trimming unit: Lubricant NFLY
- Before the buffing unit: Cleaning agent LP 193/63
-----------------------------
Price of the above machine on request!
-----------------------------
Options with surcharge:

Additional quick-change glue tray for, EUR 2,590.00

Freight costs, complete, incl. delivery and installation.
Including intensive training of the operating personnel, EUR 3,750.00
-----------------------------

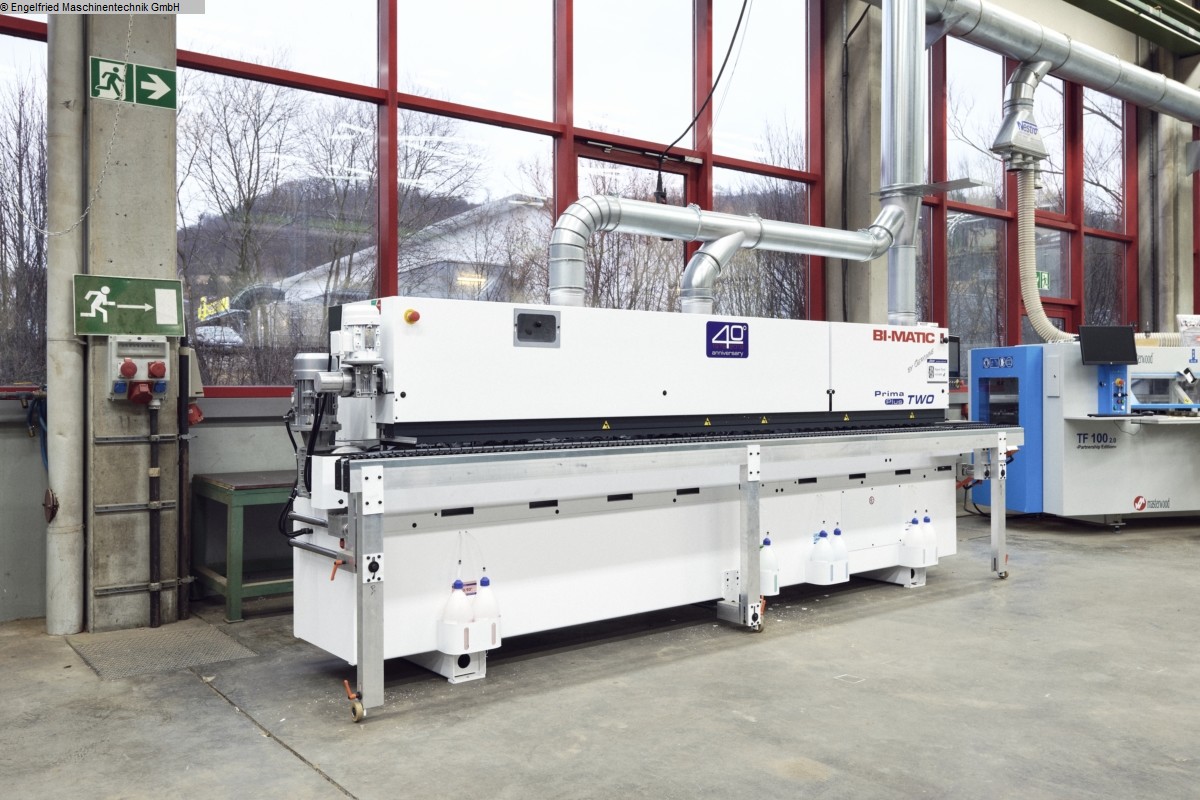

No original picture, picture shows identical model!

(Technical data according to manufacturer - without guarantee!)
All prices quoted are net plus VAT.
